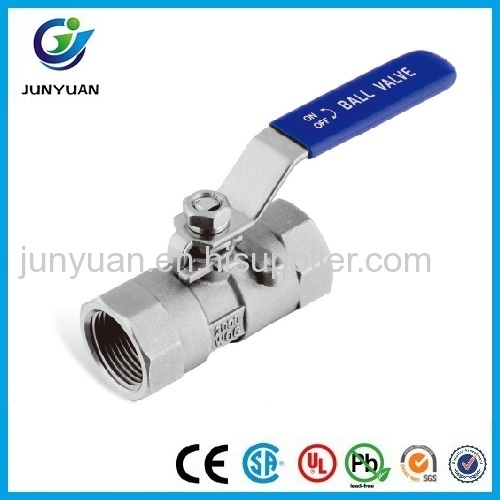

2000 PSI CASTING BALL VALVE

Model: JY0083
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Stainless Steel
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JUNYUAN
Material: Stainless steel
Size: 1/4"--1"
Thread Connection: Female Thread,BSP.NPT
Working Pressure: PN25
Technical: Forged
Certificate: ISO9001, CE,ACS.UL,CSA
Brand: JY or Professional OEM
Working Temperature: -10-110℃
HS Code: 8481804090
Model Number: JY0083

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.8 USDProduction Capacity:10 0000pcs per month
Trade Term:FOB,CFR,CIF,DDP,DAP,CIP,CPT,FCA,EXWPacking:Polybag, Inner Box,...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:Shipped in 35 days...
Min. Order:3000 Piece/Pieces
Means of Transport:Ocean, Air, Land

1 PC 2000 PSI CASTING BALL VALVE







Features

 Product Description :

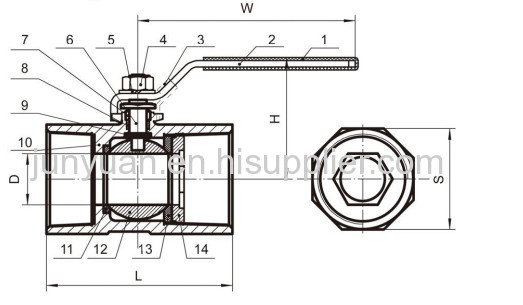

Raw material


ITEMDESIGNATIONMATERIAL
1HANDLE SLEEVEPVC
2HANDLE304
3LOCKING304
4STEM NUT304
5SPRING WASHER 304
6STEM304/316
7PACK RING304
8STEM PACKINGPTFE
9THRUST WASHERPTFE
10BODYCF8/CF8M
11SEAT(A)RPTFE
12BALLCF8/CF8M
13SEAT(B)RPTFE
14INSERT304/316


Size


SIZEθDLHWS
1/4"9.259449122
3/8"9.259449122
1/2"9.267449126
3/4"12.57147.511132
1"15846011140
1-1/4"20946512650
1-1/2"251007112655
2"3211476.515470



Production & Testing




Packaging





Certificate

Sale and Market




Why choose us

We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
