2017 M/F STAINLESS STEELBALL VALVE

Model: JY0092
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Stainless Steel
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JUNYUAN
Material: Stainless steel
Size: 1/4"--2"
Thread Connection: Female Thread,BSP.NPT
Working Pressure: PN25
Technical: Forged
Certificate: ISO9001, CE,ACS.UL,CSA
Brand: JY or Professional OEM
Working Temperature: -10-110℃
HS Code: 8481804090
Model Number: JY0092

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.8 USDProduction Capacity:10 0000pcs per month
Trade Term:FOB,CFR,CIF,DDP,DAP,CIP,CPT,FCA,EXWPacking:Polybag, Inner Box,...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:Shipped in 35 days...
Min. Order:3000 Piece/Pieces
Means of Transport:Ocean, Air, Land

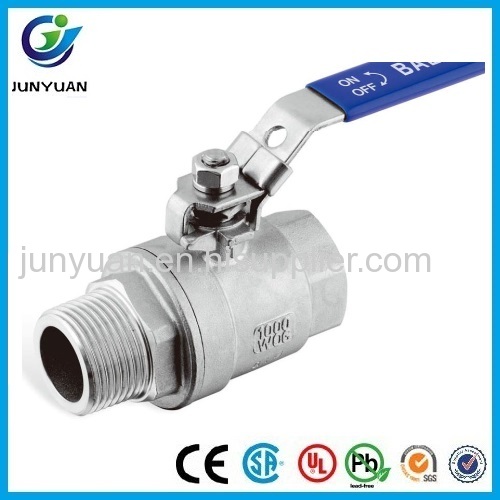

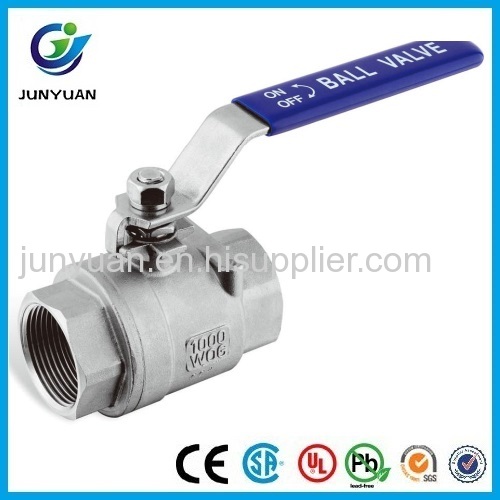

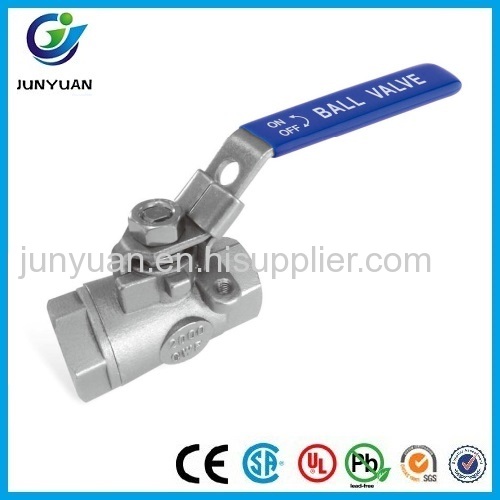

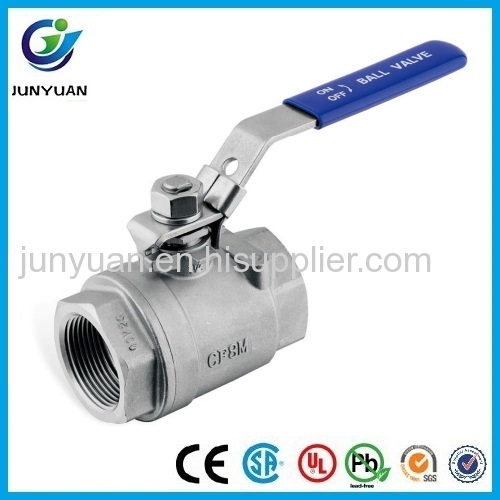

2017 M/F STAINLESS STEELBALL VALVE





Features

 Product Description :

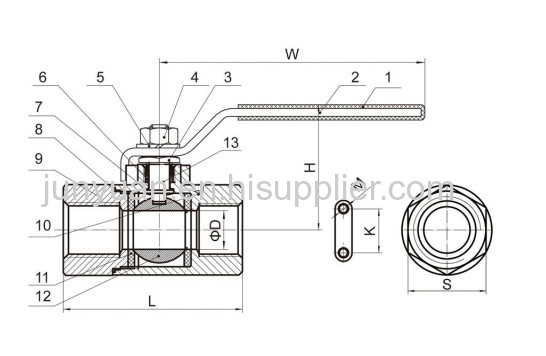

Raw material



ITEMDESIGNATIONMATERIAL
1HANDLE SLEEVEPVC
2HANDLE304
3GLAND NUT304
4STEM NUT304
5SPRING WASHER 304
6STEM PACKING PTFE
7THRUST WASHERPTFE
8JOINT GASKETPTFE
9CAPCF8/CF8M
10BODYCF8/CF8M
11BALL SEATRPTFE
12BALLCF8/CF8M
13STEM304/316

Size


SIZEDdLHWs
1/4"11.6855489119
3/8"12.511.455489121
1/2"1513.671.5529125.5
3/4"2018.2786111131
1"2523916511137.5
1-1/4"32321007915446.5
1-1/2"38381128315453.5
2"50481429719266


Production & Testing





Packaging





Certificate

Sale and Market




Why choose us

We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
