8 Inch Pneumatic Sewage Knife Gate Valve with En DIN

Model: DBV17
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Gate
Material: Others
Temperature of Media: Normal Temperature
Media: Water
Brand Name: xbfm/ OEM
Usage: Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
Application: Industrial Usage, Water Industrial Usage, Household Usage
Certificate: API.ISO.Ce.Ts,Wras
Color: Black,Blue,Green,
Disc Material: Di+EPDM/Di+NBR/Di+Viton
Connection: Flanges Universal Standard
Specification: 11/2"-24"
Thread Position of Valve Rod: Inside Gate Valve
Standard: DIN
Size: Dn40-Dn600

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:18.0~20.0 USDProduction Capacity:50000PCS/Year
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:stock or 15 days
Min. Order:50 Piece/Pieces
Means of Transport:Ocean, Air, Land

Product Description

PN16 Handwheel Ductile Iron Knife gate valve,AWWA Ductile Iron Resilient Seated Gate Valve,

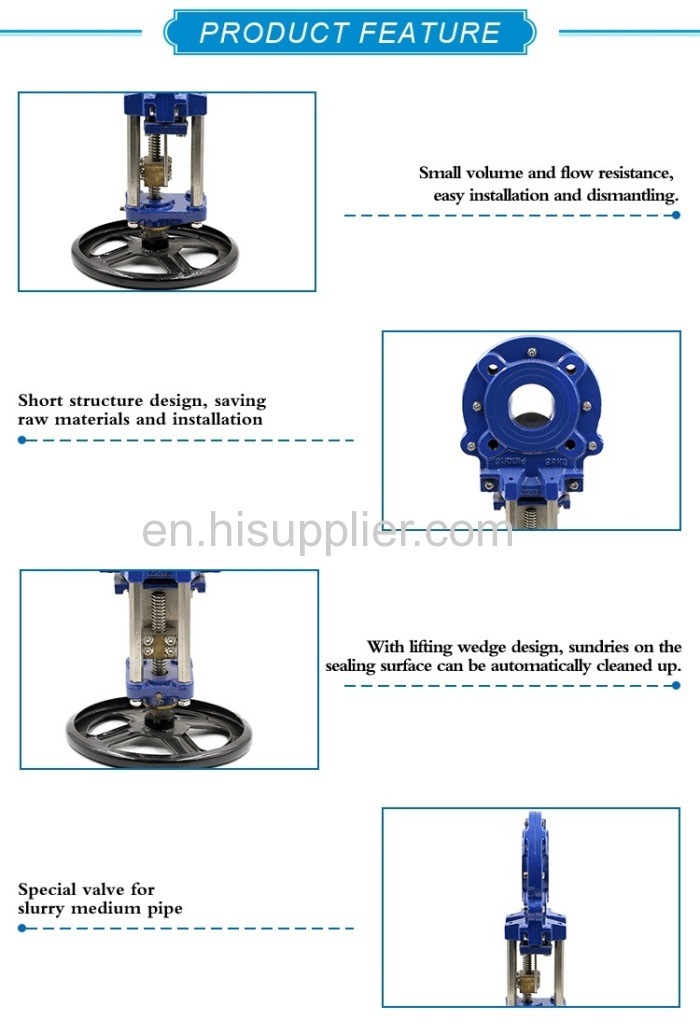

Product Feature


  • Small volume and flow resistance, easy installation and dismantling

  • Short structure design, saving raw materials and installation space

  • With lifting wedge design, sundries on the sealing surface can be automatically cleaned up

  • Special valve for slurry medium pipe



Technical Parameters


Nominal diameter50~300
Nominal pressure 1.0
Testing pressureShell(Mpa)1.5
Seal(Mpa)1.1
Suitable temperature-40°C~200°C
Suitable mediumDrinking water,sewage,seawater,food,medicines,gas,oil



Main Raw Material


Body&bonnetwedgeStemSeatActuator
CISS304LStainless steelEPDM
Handwheel
DIstainless steelcustomisedNBRPneumatic



Viton Electric




Reference Standard


Design standardEN 593
Testing standardAPI 598
End flange standardDIN 2501 PN10/PN16
Face to face standardDIN 3202 K1

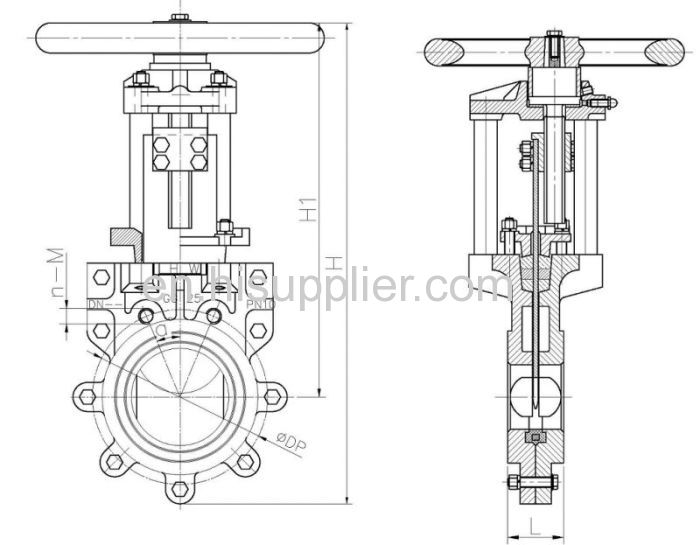

Overall Dimension and Weight


SizeHH1∅DPN-ML
PN10PN16PN10PN16
DN503452831251254-164-1618
DN653773081451454-164-1618
DN804293361601608-168-1620
DN1004643621801808-168-1620
DN1255364112102108-168-1622
DN1506375042402408-208-2022
DN2007656062952958-2012-2024
DN25090971235035512-2012-2426
DN300101680840041012-2012-2428

Packaging & Delivery

Packaging Details
Bubble pack for Multi-purpose cast iron gate valve with prices stem extension. Outside packing are plywood cases. Or as per the request of customers.
Delivery Time
Shipped in 30 days after payment

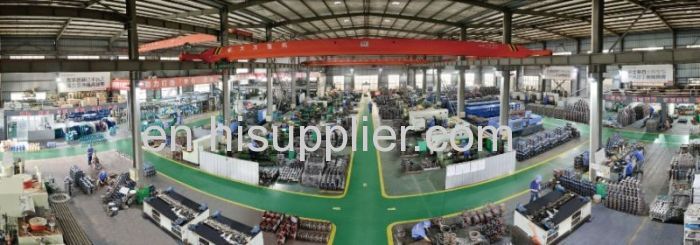

Why Choose US


We control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
