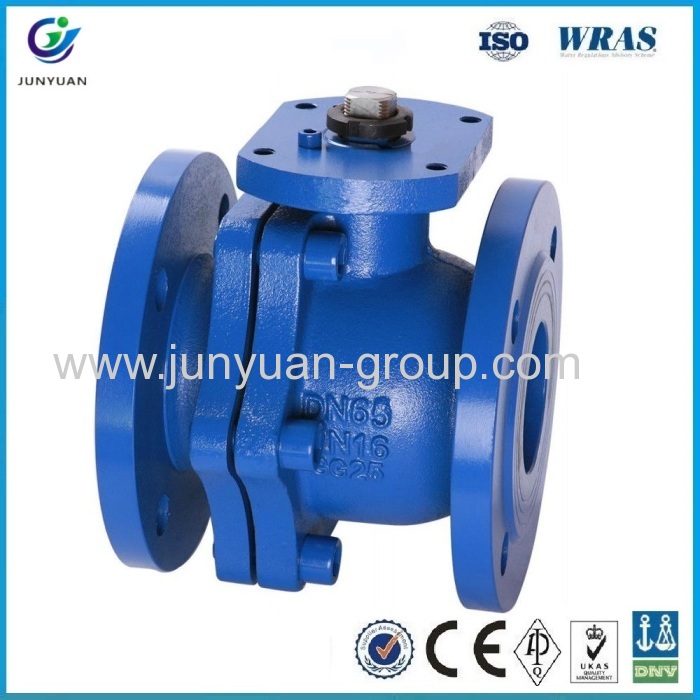

ANSI Ductile Iron Ball Valve,Cast Iron Ball Valve ,ANSI-125/150 Cast Iron Ball Valve
Specifications
Ball valve Products flexible from open to shut, no obstruction, connection strong, good sealing performance. 070-2 cast iron gate valve rising stem
Application:
1. Face to face is according to ANSI B16.10
2. Flange drilled is according to ANSI B16.1
Test:
Workingpressure 125PSI 150PSI
TestpressureShell 21.1kgf/c 21.1kgf/c
Seat 15.0kgf/c 15.0kgf/c
Components:
1. Body: Cast iron or Ductile iron
2. Ball: Stainless steel
3. Glandpacking: PTFE
4. Bonnet: Cast iron or Ductile iron
5. Stem: Stainless steel
6. Handle: Ductile iron
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| 1/2" | 3/4" | 1" | 1.25" | 1.5" | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" |
| L | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 356 | 394 | 457 | 533 |
| H | 59 | 63 | 75 | 86 | 97 | 131 | 142 | 170 | 201 | 252 | 286 | 340 | 410 |
| D | 89 | 98 | 108 | 117 | 127 | 152 | 178 | 191 | 229 | 254 | 279 | 343 | 406 |
Machining Process
Work Shop
Shipment and packing , transport

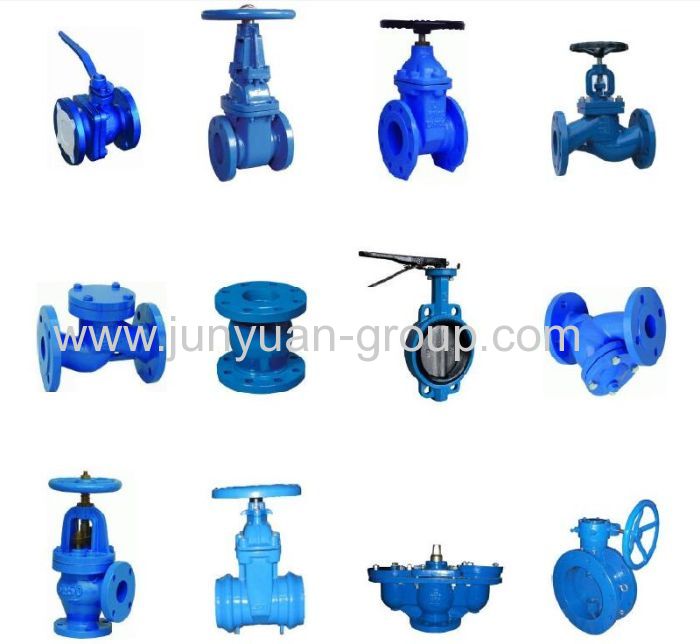

Other Porducts
Why Choose US
We control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.
We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.
We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
