API 6D WPB/SS304 RF/BW Full Weld Ball Valve with Lever or Gear Operated

Model: JY167
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Casting
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JY/OEM
Port Size: 2"~40"
Application: Oil, Gas, Water
Characteristic: Weld Ball Valve
Design & Manufacture: API 6D, ASME B16.34 & BS5351
Pre-Temp. Rating: ASME B16.34
Face To Face: ASME B16.10
Ends Connection: RF, RTJ, BW
Inspect & Test:: API 598
Certificate: DNV CE 0575

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.5 USDProduction Capacity:32000 Set/Sets per...
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, WU, D/P, T/TDelivery Date:stock or 15 days
Min. Order:3000 Piece/Pieces
Means of Transport:Land, Ocean, Air

API 6D WPB/SS304 RF/BW Full Weld Ball Valve with            Lever or Gear Operated

Description of Product


Product NameAPI 6D WPB/SS304 RF/BW Full Weld Ball Valve with Lever or Gear Operated
Valve TypeFull Weld Ball Valve
Size RangeDN15~DN1000, 1/2"~40"
Pressure RangePN10~PN420, CLASS150~2500
Connection EndRF, RTJ, BW
StandardAPI6D, API 598, ASME B16.34, BS5351, MSS SP-25
Operation WayManual, Pneumatic Actuator, Electric Actuator
Packing MethodStandard Export worthy duly wooden boxs
Shipment WayBy Express, By Air or BySea, as customer request


Construction is as follows:

- Full Port or Reduce Port

- Weld on Body

- Fire Safe Design

- Anti-static Design & Blow-out proof stem

- With or Without Extended Stem

- Underground Using

- Butt Weld Ends to ASME B16.25

- Flanged Ends to ASME B16.5

Main Part & Materials

Part NamesPart Materials
BodyWPBSS304/316F11/F22F304F316F304LF316L
BonnetWPBSS304/316F11/F22F304F316F304LF316L
BallSS304SS304/316F11/F22SS304SS316SS304LSS316L
StemSS304SS304/316F11/F22F304F316F304LF316L

Seat/Seat Ring

PTFE/RPTFE/NYLON/DEVLON/PEEK or METAL
PackingGraphite/PTFE
GasketSS304+Graphite/SS304+Graphite
Bolts/NutsB7/2HL7/4B16/4B8/8B8M/8MB8/8B8M/8M

Suitable Medium

W.O.G etc.HNO3, CH3OOH etc.

Suitable Temperature

-29~425 °C-46~340 °C-46~340 °C-196~427 °C-196~427 °C-196~427 °C-196~427 °C

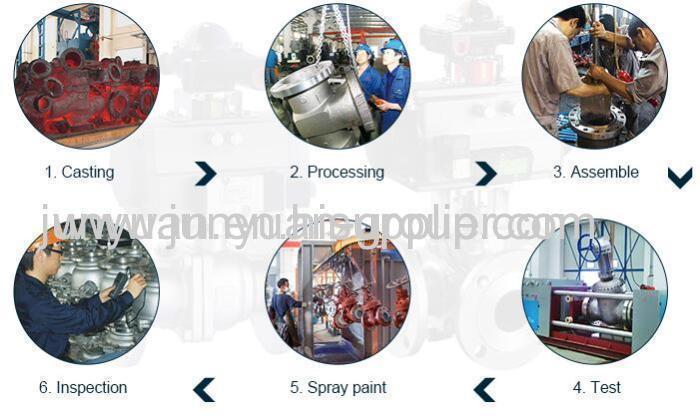

Machining Process

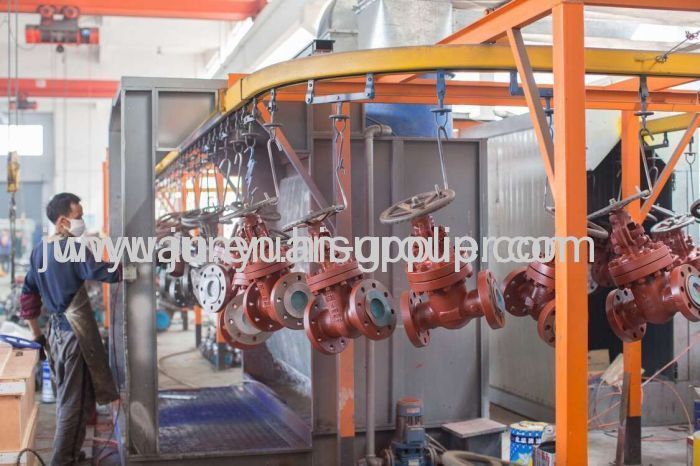

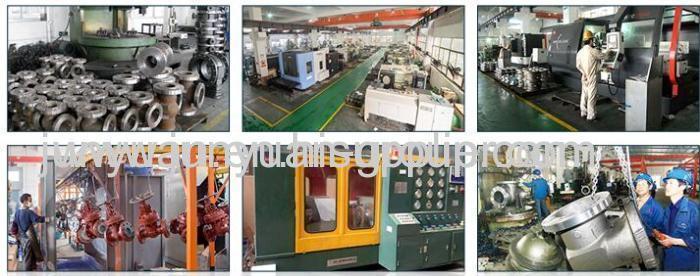

Work Shop




Why Choose US



We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
