Best selling small fluid medium pressure cast iron api6a 3pc ball valve 6''

Model: JY140
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Gate
Material: Casting
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JY/OEM
Structure: Ball
Material: cast iron
Port Size: DN20(3/4'')-150(6'')
Application: General
Seat: PTFE+25%C
Seal ring: PTFE
Type: 3pc ball valve
Maintenance: 15000 times trouble free use
Usage: Convey Water
Ball: ss304 float ball

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.5 USDProduction Capacity:32000 Set/Sets per...
Trade Term:FOB,CFR,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:stock or 15 days
Min. Order:1 Piece/Pieces
Means of Transport:Ocean, Air, Land

Best selling small fluid medium pressure

cast iron api6a 3pc ball valve 6''


Description of Product



(1) Shell Hydrostatic Test

ANSI B 16.34 Section 7.1
Valve Size NPSTest pressureTest Time. Sce
Below DN501:5 times the 100°F15 Sce
DN65~DN200Rating of  ANSI  Class60 Sce
Up DN250Max. Operating Pressure180 Sce

Test pressure should be above 1.5 times  than the valve's Max work pressure (100F)

(2) Seal Hydrostatic Test

The pressure should be more 1.1 times than working pressure by seal hydrastatic test



ANSI B 16.34 Section 7.2
Valve Size NPSTest pressureTest Time. Sce
below DN501:1 times the 100°F15 Sce
DN65~DN200Rating of  ANSI  Class30 Sce
above DN250Max. Operating Pressure60 Sce

Test pressure should be more 1.5 times  than the valve's Max work pressure (100F)180Sce

(3) Seal Air Test

Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.

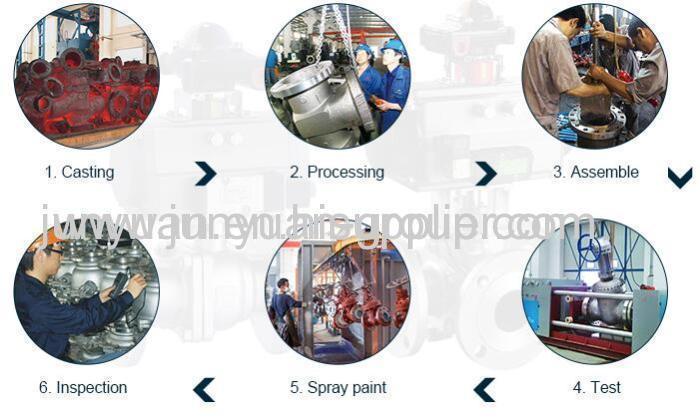

Machining Process

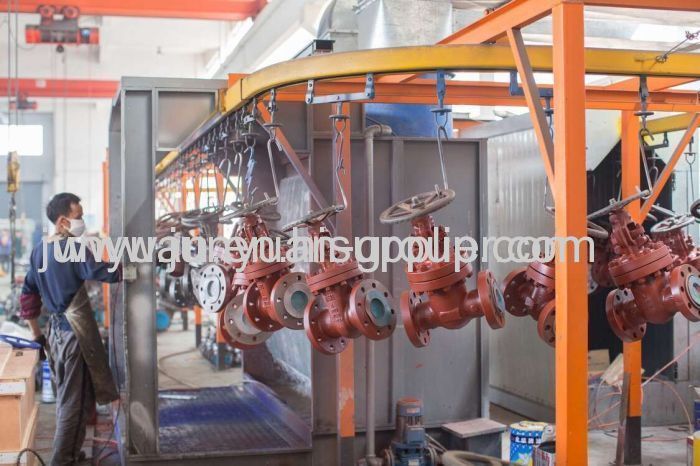

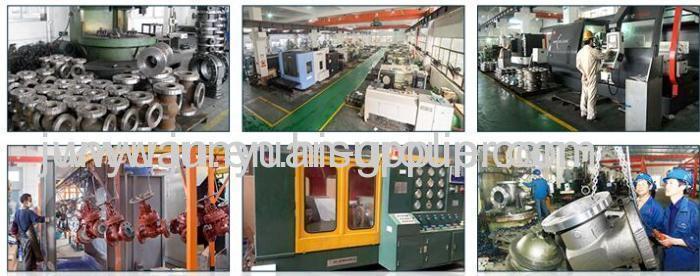

Work Shop

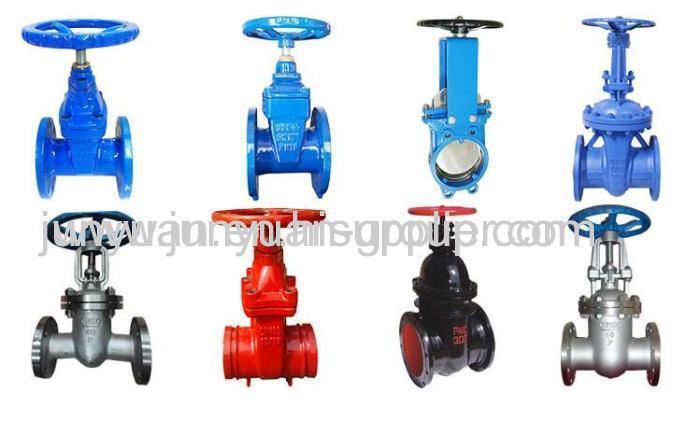

Other Product
