Bh Series Dual Plate Wafer Butterfly Check Valve

Model: CICV02
Place of Origin: Zhejiang,China (Mainland)
Power: Others
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Check
Material: Casting
Temperature of Media: Normal Temperature
Media: Water
Brand Name: xbvalve
Standard: ANSI
Size: Dn40~Dn900
Delivery Time: 20~40 Days, Depend on The Quantity
Specification: DN40-700
HS Code: 8481804090
Flow Direction: Unidirection
Application: Industrial Usage, Water Industrial Usage, Household Usage
Inch: 1-1/2 "~24"
Certificate: ISO, Ce .API RS
Transport Package: Export Polywood Case

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:28.0~30.0 USDProduction Capacity:30000PCS/Year
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/TDelivery Date:stock or 15 days
Min. Order:10 Piece/Pieces
Means of Transport:Ocean, Air, Land

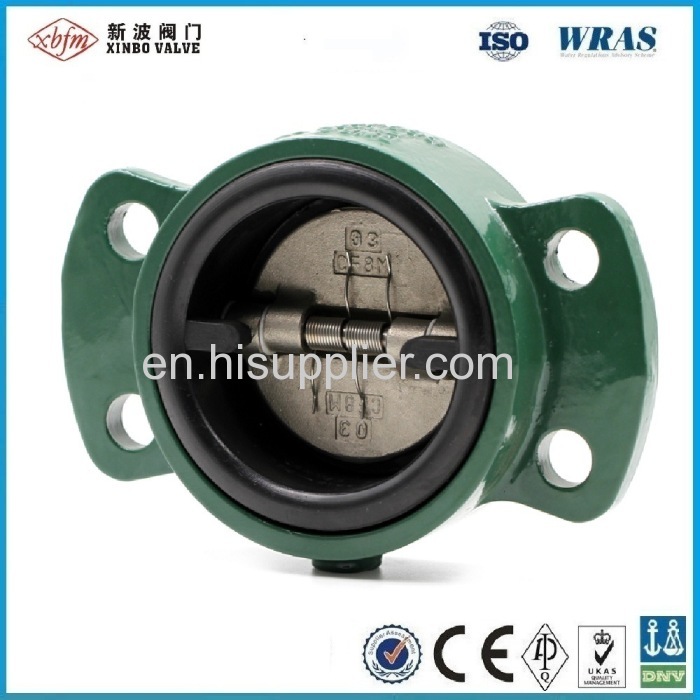

PN16 DN100 Ductile Iron  spring loaded dual disc wafer check valves, Wafer Type Dual Disc Check Valve /Ductile iron Check Valve ,Double Flange Swing Check Valve/ Cast Iron Swing Check Valve ,WCB/CF8/CF8M/CF3/CF3M Wafer Type Dual Plate/DoubleDisc Swing Check Valve

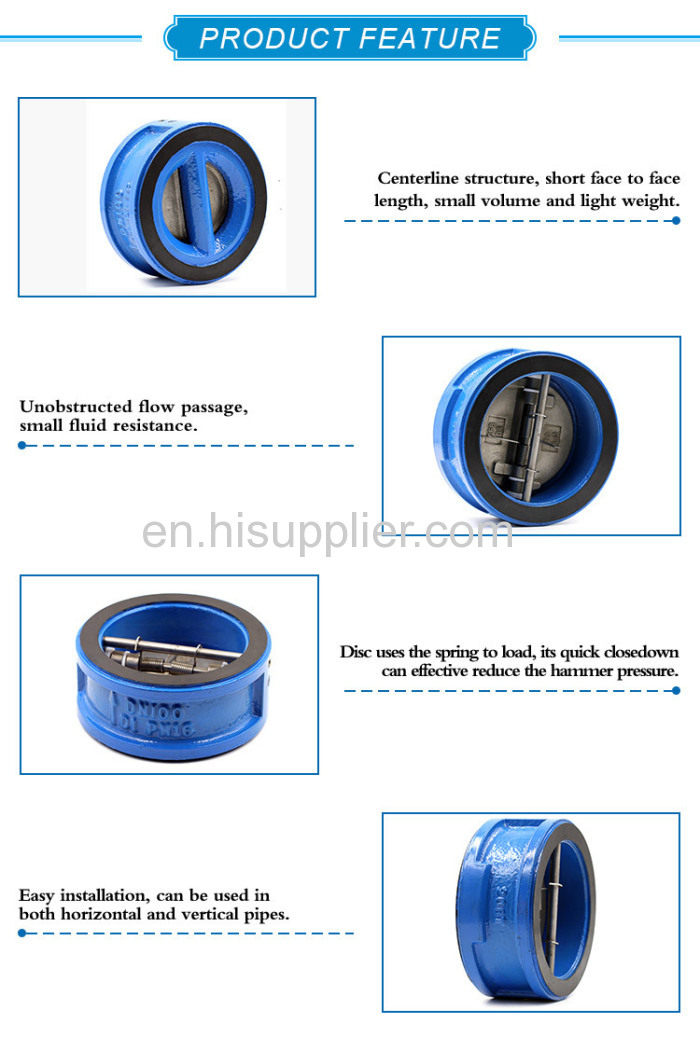

Product Feature



  • Centerline structure, short face to face length, small volume and light weight.

  • Unobstructed flow passage, small fluid resistance.

  • Disc uses the spring to load, its quick closedown can effective reduce the hammer pressure.

  • The sealing property is good, the closure does not have noise and can meet the requirement of zero leakage.

  • Easy installation, can be used in both horizontal and vertical pipes.



Technical Parameters



Nominal diameter(mm)50~60050~600
Nominal pressure(Mpa) 1.0 1.6
Testing pressureShell(Mpa)1.52.4
Seal(Mpa)1.11.76
Suitable temperature(°C)-40°C~200°C
Suitable mediumDrinking water,sewage,seawater,food,medicines,gas,oil



Main Raw Material



BodyDiscStemSeatSpring
Cast ironPlated ductile iron

Stainless

steel

EPDM/NBRSS304
Ductile ironCF8WRAS-EPDMSS316
Carbon steelCF8MViton
Stainless steelAluminum bronzecustomisedSilicon
PS:Replaceable seat



Reference Standard


Testing standardAPI 598
End flange standardANSI 125# / 150#

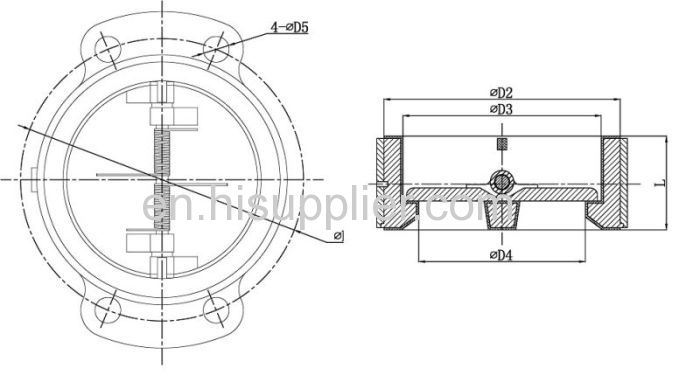

Overall Dimension and Weight


SizeLΦD1ΦD2ΦD3ΦD4ΦD5Weight(kg)
DN5053.9812584.1464.9547.63182.27
DN6553.9814598.4377.5258.72182.72
DN8053.98160115.8990.2269.85183.63
DN10063.5180152.88114.0587.3186.81
DN12566.68210171.45141.03112.7189.08
DN15079.38240200.03168.02114.272211.8
DN20098.43295254218.95192.072219.52
DN250101.6350307.98272.79230.172226.33
DN300130.18400365.13323.72274.622245.4
DN350180.98460396.88355.35306.372261.29
DN400161.93515450.85409.58355.62677.18
DN450184.15565508456.95406.42699.88
DN500215.9620555.62507.75469.326130.3
DN600215.9725657.22612.7565.230152.09



PRODUCT FEATURE


Other products


Why Choose US

Our factory is specialized in valves' production. As one of the biggest and most professional manufacturer and exporter majored in valves, we assure that we can provide our products with cheapest price, good quality and best service. If you like, welcome to our factory and have a look!


We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

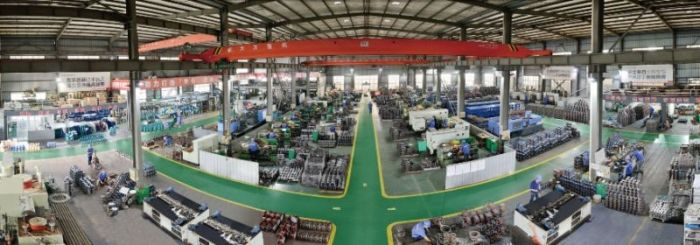

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
