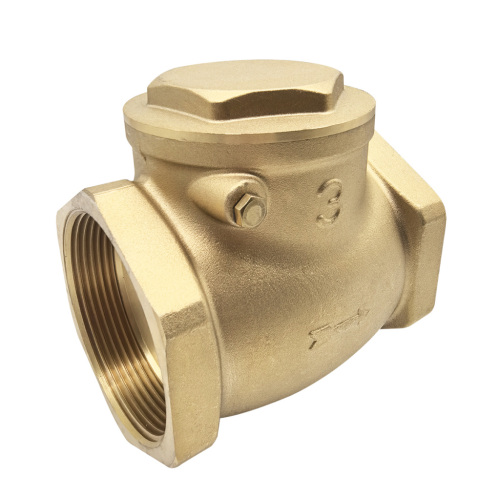

Brass non return check valve

Model: JY0609
Place of Origin: Zhejiang,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Check
Material: Brass
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JUNYUAN
Material: Brass
Size: 1/2"--4"
Thread Connection: Female Thread,BSP.NPT
Working Pressure: PN25
Technical: FORGED
Certificate: ISO9001, CE,ACS.UL,CSA
Brand: JY or Professional OEM
Working Temperature: -10-110℃
HS Code: 8481804090
Function: water ,oil ,Steam

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.18 USDProduction Capacity:10 0000pcs per month
Trade Term:FOB,CFR,CIF,DDP,DAP,EXWPacking:Polybag, Inner Box,...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:Shipped in 40 days...
Min. Order:2000 Piece/Pieces
Means of Transport:Ocean, Air, Land

 horizontal type brass tilting disc check valve /Brass non return check valve





 Swing Check Valve Metal Tightness
This valve is ideal for hydro, heating and pneumatic plants.

.1/2"to2"in hot pressed Brass
.2-1/2"to 4" in casting Brass
.Seals in Metal
.Screw in Brass
.The max .working temperature=110℃



bar(max)

20

20

20

20

20

20

202020

G

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/2"3"4"

D

54

53

68

76

82

98

118

140160

H

49.5

56.5

67

80.5

90

101.5

125143.5167.5

WEIGHT(g)

180

265

365

600

750

1100

210030005000

Specifications



Brass check valve ,Brass Horizontal Check Valve  Size : DN15--100  (1/2"~4")



1)  ISO9001 Certificate

2)  quality guaranteed

3)  delivery in time
4)  over 15 years experience

5)  Nominal pressure:1.6Mpa.

6)  Working medium:Water,non corrosive liquid(not include oil),saturated steam.

7)  Working Temperature:-20℃≤t≤150℃.

8)  Pressure testing to ISO5208 or as customer requirement

9)  Pipe thread ISO 7/1, ISO228, DIN2999 , BSPT. BSP ,NPT ,G .R . ...

10)  material part :  brass body  , plastic or brass pin

  production process‍



Inspection:

 Each cargo will be inspected before shipping. The third-party inspection company is acceptable. Like SGS, ASIA inspection, etc.

Packaging & Shipping
