Cast Iron Double Flanged Butterfly Valve

Model: CIBV11
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Low Pressure
Structure: Butterfly
Material: Casting
Temperature of Media: Low Temperature
Media: Water
Brand Name: xbfm/ OEM
Material of Seal Surface: Soft Sealed
Application: Industrial Usage, Water Industrial Usage, Household Usage
Inch: 2"-48"
Disc: Di/CF8/CF8m/C95400
Seat: NBR/EPDM/PTFE
Standard: BS/DIN/ANSI/JIS /GB .. No Standard
Export Carton Dimensions L/W/H: 1.1 × 0.9 × 1 Mete
Lead Time: 10 - 30 Days
Hts Code: 8481.80.40 90
Shaft: Ss420/SS316/Ss410

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:4.5~5.1 USDProduction Capacity:100000 PCS/Year
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/TDelivery Date:stock or 15 days
Min. Order:100 Piece/Pieces
Means of Transport:Ocean, Air, Land

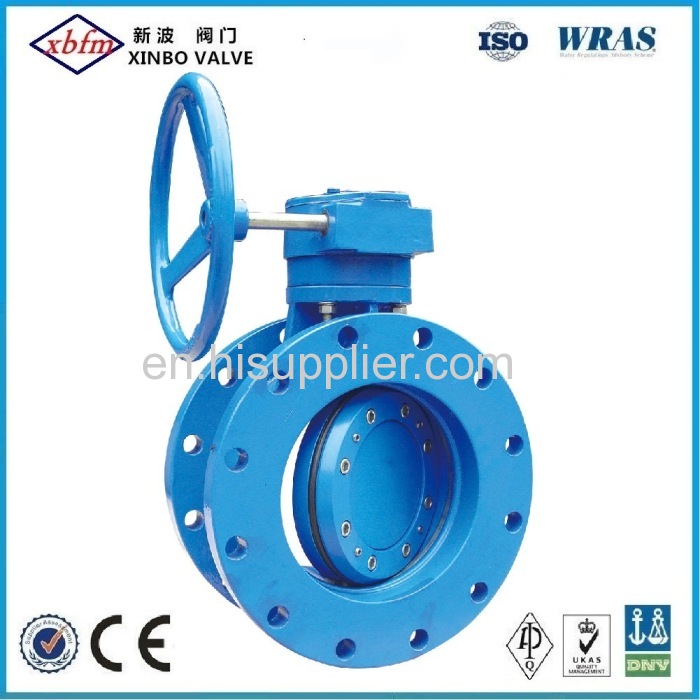

Double Flange Centreline Butterfly Valve

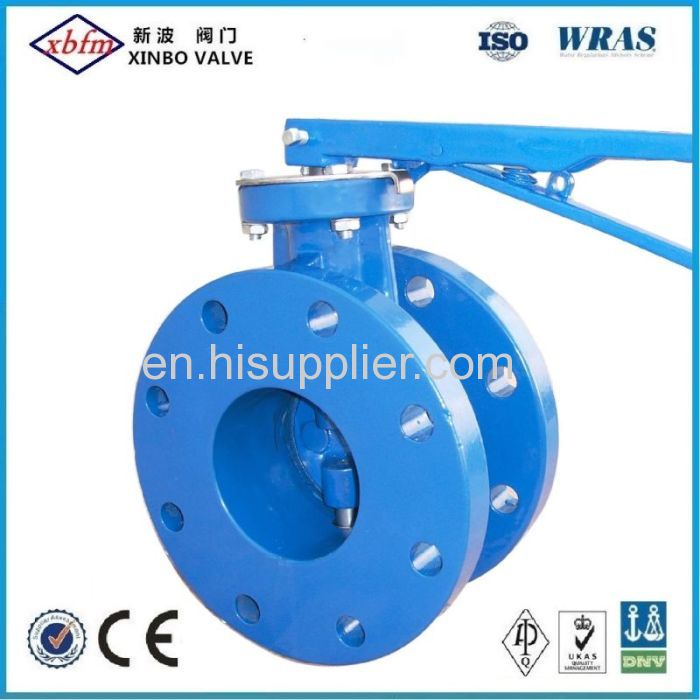

BS/DIN/ANSI/JIS  Butterfly Valve

Features

• Flanged Butterfly Valve  is operating by 100% tight sealing through quarter turn (90 degree) disc rotating around its own axis

• the gasket fixed to the outer diameter of the disc and stainless steel welding filled to the inner walls of the valve body

• Through its body and disc made of ductile iron, it can resist to high tension stresses that may occur on the pipelines. High impact resistance

• The disc designed in accordance with the flow direction decreases head loss

• The sealing that can be made of EPDM or NBR materials can be dismantled and replaced easily
on field conditions

• Inner and outer surfaces of the valve is coated with 300 microns thickness of fusion bonded epoxy

• The valve can be controlled with lower torques through the gearbox mounted on its top flange

• Actuators can be installed directly without any need for additional intermediary parts.

Applications

Waste Water, Distribution Lines, Water Treatment, HVAC

Temperature

+130 °C (EPDM)
+100 °C (NBR)


Specifications

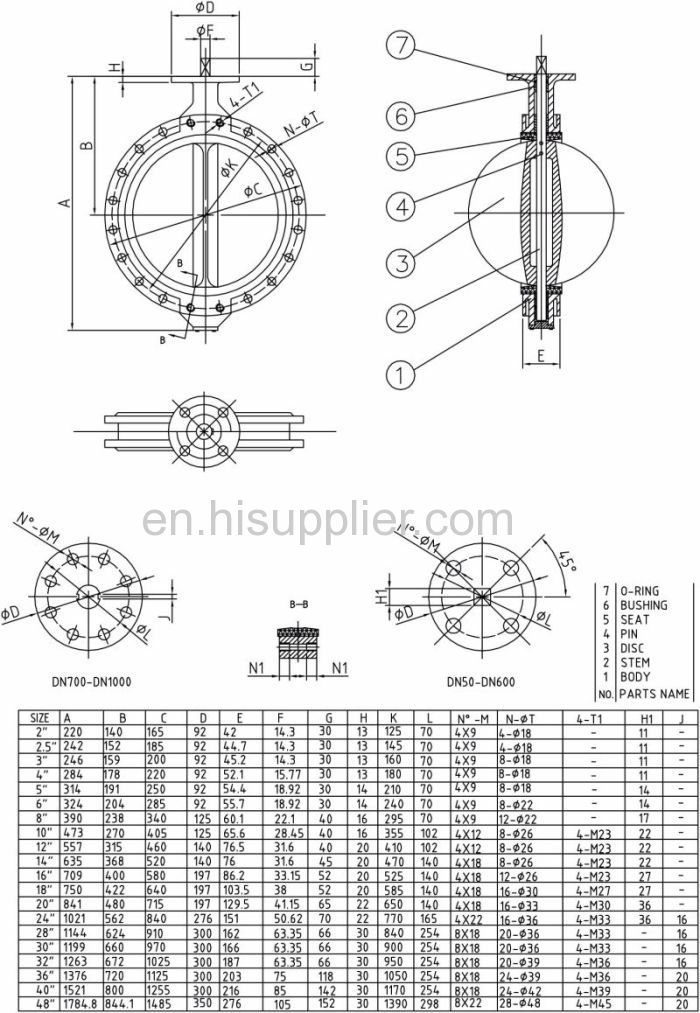

NO.PARTS  NAME MATERIALQTY
1BODYGGG501
2STEMSS4161
3DISCGGG501
4SEATEPDM1
5BUSHINGP.T.F.E.4
6O-RINGEPDM1
7PINSS4162DNLY 2-5 ONEPN
8LEVERCast Iron1
9INDICATORCARBON STEEL1
TEST
PRESSURE

SHELLSEAL

HYDROSTATIC24 Kg/cm217.6 Kg/cm2

AIR

STANDARDDESIGN CODEBS 5155

INSPECTION & TESTDIN 3230 PART 3

END STANDARDDIN PN16

FACE TO FACEDIN 3202 K1
TITLE : LEVER WAFER BUTTERFLY VALVE
DN50-DN300
APPROVED
DWG NO.REV
CHECKED


DEAWN


DESIGNED
SCALE
UNITmm


Certificate: ISO9001, CE0035, WRAS


U section flanged butterfly valve

Design: EN593/API609
Class: PN10/16, 125Lbs
Face to face: API 609; EN558 1-20 Series
Flange Connection: GB, DIN, BS, JIS, ANSI
Testing: API 598
Size:DN50-DN1200
Operator: Handle Lever, Worm Gear, Electrical Actuator, Pneumatic Actuator


Material:
Body: Cast Iron (ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200,EN-GJL-250); Ductile Cast Iron (ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15); Stainless Steel (ASTM A351 CF8, CF8M; CF3, CF3M); Carbon Steel (ASTM A216 WCB)
Stem: Stainless Steel (ASTM A276 Type 316, Type 304, Type 410; ASTM A582 Type 416)
Taper Pin: Stainless Steel (ASTM A276 Type 410,Type 304, Type 316)
Seat: NBR, EPDM, Neoprene, PTFE, Viton
Disc: Nickel Plated Ductile Cast Iron (ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15); Stainless Steel (ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469); AL-Bronze (ASTM B148 C95400)
O-Ring: NBR, EPDM, Neoprene, Viton
Bushing: PTFE, Lubricated Bronze



Why Choose US

We are a professional manufacturer and supplier of valves, pipes and fittings which are widely used for water, oil and gas pipe lines
We have been supplying the valves and fittings to Europe, Asia, Middle East countries and Amercian markets for 15 years
Our factory has obtained ISO9001, CE0035 and API approval certificates for our valves and fittings made of iron, steel and copper alloy with design to DIN, BS, ANSI, JIS standard
We can also manufacture valves and fittings according to client's design

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.

Our service
We promise the quality for 24 months and also supply custom service
Long service life. Standing the test of thousands opening/closing operation.
Wide selection of materials, applicable for various media.
