DIN FLANGED BALL VALVE

Model: JY0074
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Stainless Steel
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JUNYUAN
Material: Stainless steel
Size: 1/2"--4"
Thread Connection: Female Thread,BSP.NPT
Working Pressure: PN25
Technical: Forged
Certificate: ISO9001, CE,ACS.UL,CSA
Brand: JY or Professional OEM
Working Temperature: -10-110℃
HS Code: 8481804090
Model Number: JY0074

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.8 USDProduction Capacity:10 0000pcs per month
Trade Term:FOB,CFR,CIF,DDP,DAP,CIP,CPT,FCA,EXWPacking:Polybag, Inner Box,...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:Shipped in 35 days...
Min. Order:3000 Piece/Pieces
Means of Transport:Ocean, Air, Land

DIN  FLANGED BALL VALVE




Features

 Product Description :

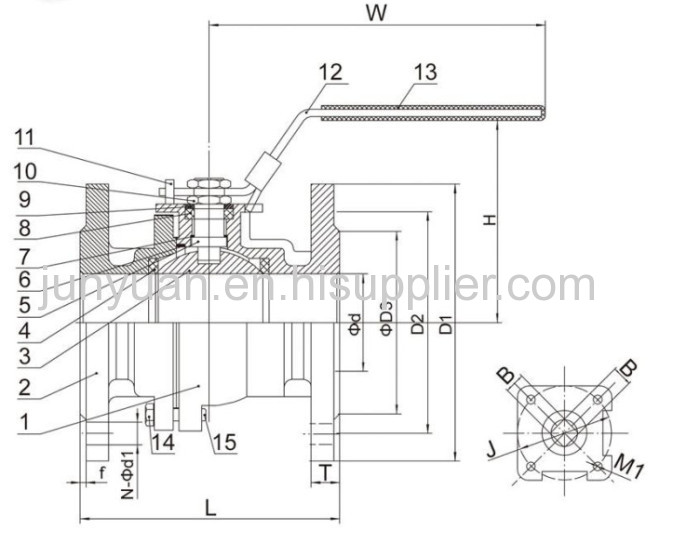

Raw material


ITEMDESIGNATIONQTYMATERIAL
1BODY11.4408/1.4308
2CAP11.4408/1.4308
3BALL11.4408/1.4308
4BALL SEAT2RPTFE
5STEM1304/316
6BODY GASKET1PTFE
7STEM PACKING1PTFE
8V-RING PACKING1PTFE
9GLAND1304
10NUT2304
11STOP PIN1304
12HANDLE1304
13HANDLE SLEEVE1PVC
14NUT4-8304
15BOLT4-8304

Size


SIZEdBHWLD3D2D1Tfd1NJM1BOLT NUMBERPN16  PN40
1/2"15118016011545659516214442M54
3/4"201190160120587510518214442M54
1"251495160125688511518214450M64
1-1/4"32141051601307810014018218450M64
1-1/2"38171102201408811015018318470M84
2"501711822015010212516518318470M84
2-1/2"651713622017012214518518318870M86PN16
3"7622158320180138160200203188102M106
4"9422178320190158180220203188102M108



Production & Testing




Packaging





Certificate

Sale and Market




Why choose us

We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
