Ductile Iron Ball Valve

Model: DBV001
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Casting
Temperature of Media: Medium Temperature
Media: Water
Brand Name: JUNYUAN
Connection Form: Flange
Nominal Pressure: PN1.0-32.0MPa
Structure: Floating Ball Valve
Function: Blow-Down Valve, Relief Valve, Atmospheric Valve, Ball Valve
Application: Industrial Usage, Water Industrial Usage, Household Usage
Material: Ductile Iron
Channel: Straight Through Type
Type: Floating Ball Valve
Temperature: Normal Temperature
Certificate: ISO, API.Ce, Crn

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:2.0 USDProduction Capacity:32000 Set/Sets per...
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:stock or 15 days
Min. Order:2 Piece/Pieces
Means of Transport:Ocean, Air, Land

Ductile Iron Ball Valve,Cast Iron Ball Valve  ,ANSI-125/150 Cast Iron Ball Valve


Specifications

Ball valve Products flexible from open to shut, no obstruction, connection strong, good sealing performance. 070-2 cast iron gate valve rising stem

Application:
1. Face to face is according to ANSI B16.10
2. Flange drilled is according to ANSI B16.1

Test:
Workingpressure 125PSI 150PSI
TestpressureShell 21.1kgf/c 21.1kgf/c
Seat 15.0kgf/c 15.0kgf/c

Components:
1. Body: Cast iron or Ductile iron
2. Ball: Stainless steel
3. Glandpacking: PTFE
4. Bonnet: Cast iron or Ductile iron
5. Stem: Stainless steel
6. Handle: Ductile iron



DN1520253240506580100125150200250

1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 4" 5" 6" 8" 10"
L108 117 127 140 165 178 190 203 229 356 394 457 533
H 596375 86 97 131 142 170 201 252 286 340 410
D 89 98 108 117 127 152 178 191 229 254 279 343 406


Machining Process

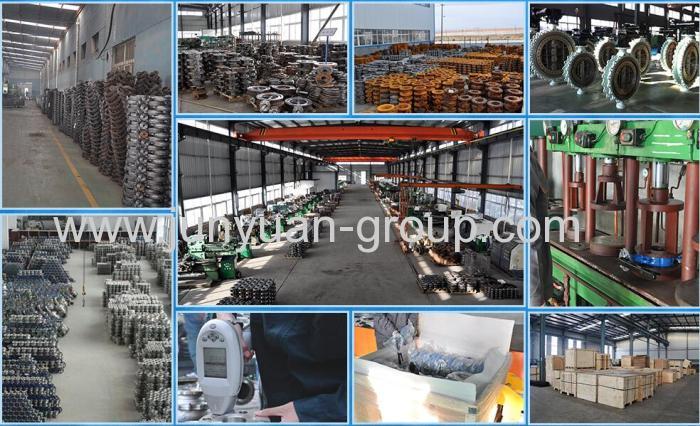

Work Shop


Shipment and packing , transport

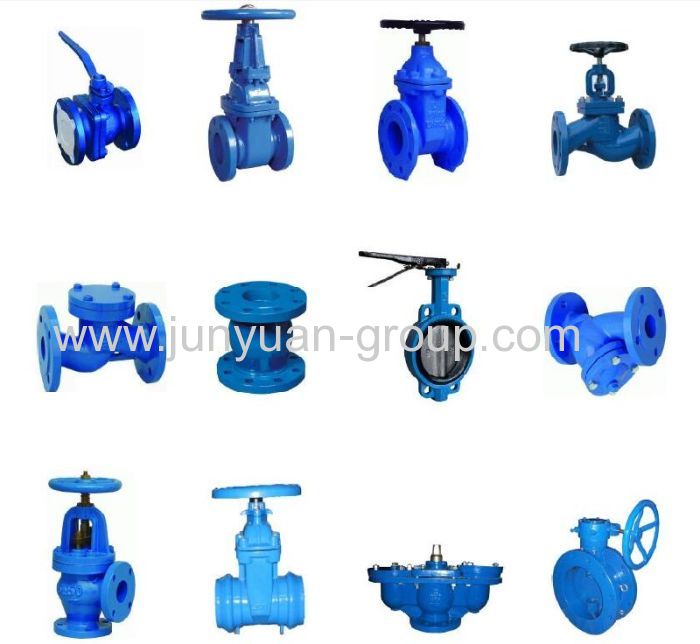

Other Porducts


Why Choose US


We control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
