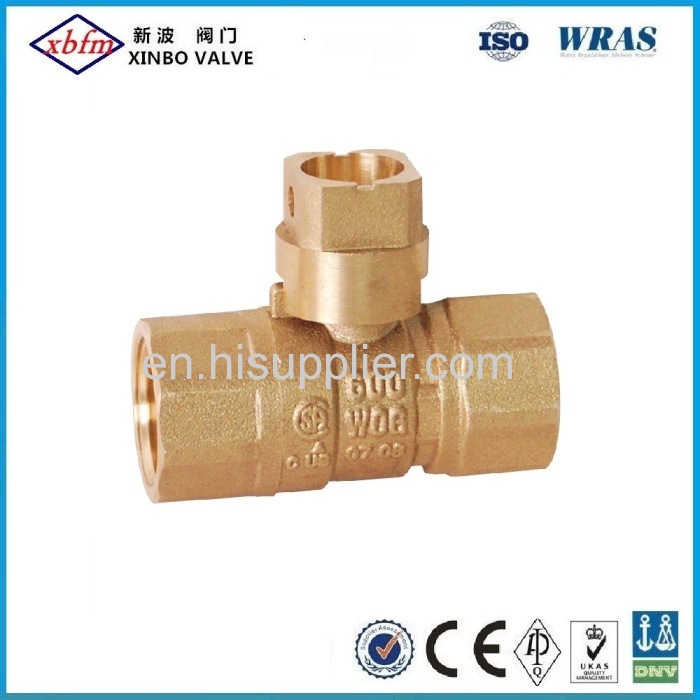

Femalex Female Brass Gas Ball Valve with Square Head

Model: BBV004
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Low Pressure
Structure: Ball
Material: Brass
Temperature of Media: Normal Temperature
Media: Water
Brand Name: xbfm/ OEM
Function: Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve
Application: Industrial Usage, Water Industrial Usage, Household Usage
Media: Water, Oil, Steam
Color: Brass /Chromed Plated
Specification: 1/4"-1′′
Type: Floating Ball Valve
Temperature: Normal Temperature
Valve Certificate: ISO9001:2000, CSA.Ce.Upc.Crn
Pressure: Low Pressure

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.9~1.0 USDProduction Capacity:1000 000 Set/Sets Per...
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/TDelivery Date:stock or 15 days
Min. Order:1000 Piece/Pieces
Means of Transport:Ocean, Air, Land

Brass Gas Ball Valve -Female x Female Square Head ,Forged Brass Ball Valve ,Brass Ball Valve With Lever steel   Handle

High Quality Brass Ball Valve

Commodity Name:   Brass Ball Valve with Butterfly Handle , water meter ball valve/lockable ball for water meter/Anti-theft Ball Valve ,Brass forged body, brass ball chrome plated,brass stem and brass handle.Full port, PTFE seals.


 MaterialForged Brass ( CW617N, CW614 ,CW602N,ASTM C37700)
 Surface Natural brass/ chrome plated
 Size 1/4" to 4"

 Testing pressure

 100% tested with 0.6MPa - 0.8MPa by air
 Connection Female thread x Female thread ,FXM,MXM
 Valve guarantee 3 Years
 Samples time 3 days - Current type
15 days - New mould
 OEM Acceptable Yes /ODM ,
 Place of origin Zhejiang,China(Mainland)


  • Material: Forged Brass ( CW617N, CW614 ,CW602N,ASTM C37700)

  • Size: 1/4'',3/8'',1/2'',3/4'',1'',11/4'',11/2'',2'',21/2'',3'',4''

  • Technical Specification:

  • Norminal pressure: 3.0Mpa

  • Tested Pressure: 2.0Mpa

  • Working medium: Water, oil, gas

  • Working temperature: -20° C≤ T≤ 120° C

  • Thread standard: According  ISO228, ISO7/1, DIN2999/

  • For the handle, it could be changed to Zinc alloy and aluminum handle

  • Package details: Each valve by one polybag, inner box, Cartons with wooden pallets

  • Application: House connection and drinking meter networks, water pipe connection and flow control

  • brass forged body, brass ball chrome plated,, brass stem and brass handle. For water meter before or after water meter PTFE packing with free nut and DECA fittings.Brass lockable ball valve for water meter with female thread, with brass body, anti-theft short or long handle.


Why Choose US





We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
