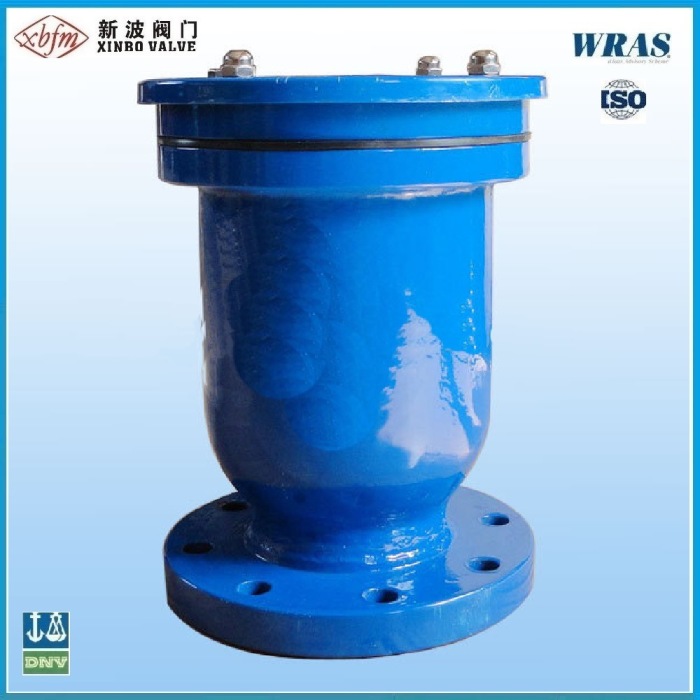

Flanged Single Ball Air Release Valve

Model: CIAV03
Place of Origin: Zhejiang,China (Mainland)
Power: Others
Standard or Nonstandard: Standard
Pressure: Others
Structure: Others
Material: Others
Temperature of Media: Normal Temperature
Brand Name: xbfm/ OEM
Size: Dn15-Dn50
HS Code: 8481804090, 8481804090
Face to Face Standard: Awwa C 509/BS 5163/ASME
End Flange Standard: ASME B 16.5 150lb
Design: Asni ,DIN3202 F1, BS5152, Ms Sp-85
Transport Package: Plywood Case, Woven Bags
Material: Ductile Iron
Certificate:: API.ISO.Ce.Ts,Wras
Color: Black,Blue,Green,
Disc Material: Di+EPDM/Di+NBR/Di+Viton

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:4.8~5.0 USDProduction Capacity:50000PCS/Year
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/TDelivery Date:stock or 15 days
Min. Order:50 Piece/Pieces
Means of Transport:Ocean, Air, Land

Product Description

Single Ball Sphere Stainless Steel Thread End Air Release Valve with DIN PN16 Thread end with single ball air release valve/Thread single ball air release valve Flanged Single Ball Air Release Valve

Air Release Valve With Flange Ends or Threaded Ends BSP or NPT
Pressure: PN10, PN16, PN25, 125 and 150lbs
Body material: GG25/GGG40, cast/ductile iron
Ball : ABS or Rubber
Epoxy paint or epoxy powder-coated: Minimum of 250 microns


Specifcation

Size

DN15-DN200

End flange

DIN/BS/ANSI/JIS

Face to Face

DIN/BS/ANSI/AWWA

Main Parts and Materials

Body

Cast Iron/Ductile Iron

Ball

Rubber or ABS

Bolt & Nut

Stainless Steel/Steel with zinc

Surface

Epoxy Powder Coated Min.250 Micron. Or Painted

Application

Temperature

≤120°C

Medium

water, wastewater, seawater, oil, Gas, air, steam, foodstuff, medicine, acids, etc.

Test

Working pressure

PN10, PN16, PN25

Shell pressure

1.5Mpa, 2.4Mpa, 27.5Mpa

Seat pressure

1.1Mpa, 1.76Mpa, 37.5Mpa



Technical Parameters


Nominal diameter(mm)40~15040~150
Nominal pressure(Mpa) 1.0 1.6
Testing pressureShell(Mpa)1.52.4
Seal(Mpa)1.11.76
Suitable temperature-20°C~180°C
Suitable mediumwater



Main Raw Material


Body&bonnetball floatBolt
CIABScarbon steel
DINBRSS304/SS316



Reference Standard


Design standardEN1074-4
Testing standardAPI 598

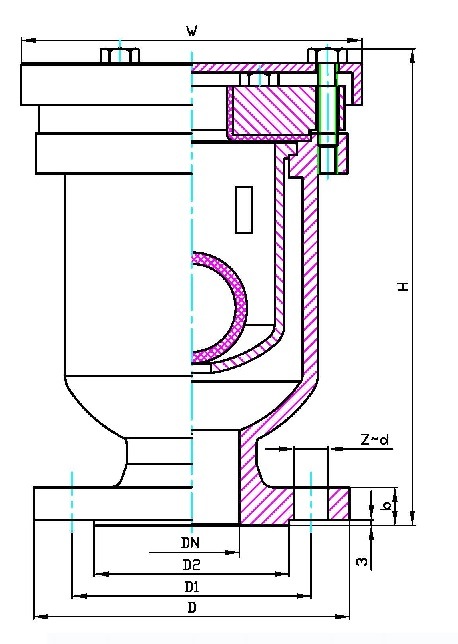

Overall Dimension


SizeDD1D2bHZ~dW
DN4015011084182244-19166
DN5016512599192364-19178
DN65185145118192444-19199
DN80200160132192488-19202
DN100220180156192848-19233
DN150285240211193248-19282


Packaging & Delivery


Packaging Details
Bubble pack for Multi-purpose cast iron gate valve with prices stem extension. Outside packing are plywood cases. Or as per the request of customers.
Delivery Time
Shipped in 30 days after payment

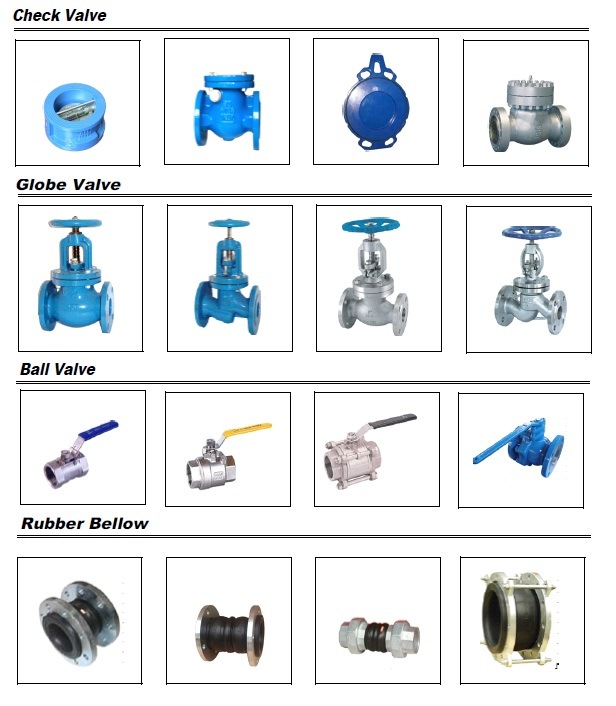

Other products
