Good quality proof stem ptfe seats bronze ball valve

Model: JY170
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Brass
Temperature of Media: Medium Temperature
Media: Water
Brand Name: JY/OEM
Port Size: 3/8"-1''
Application: General, General
Type: Brass ball valve
Connection: Female Thread

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.5~10.0 USDProduction Capacity:32000 Set/Sets per...
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:stock or 15 days
Min. Order:1000 Piece/Pieces
Means of Transport:Ocean, Air, Land

Good quality proof stem ptfe seats bronze ball valve



Description of Product

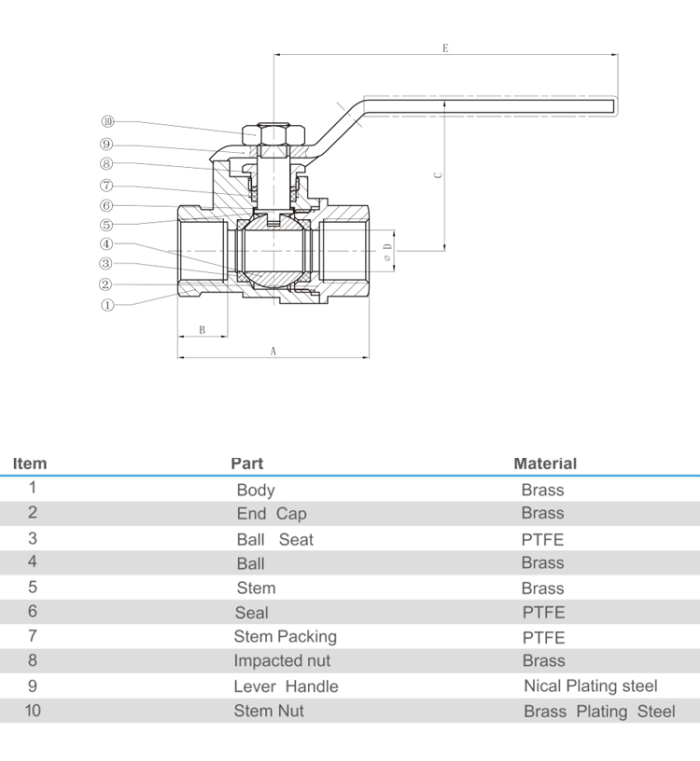

DIMENSION















Part No.

Size

A

B

C

d

D

E

Q119LF-083-00

3/8"

2.362

1.339

3.268

0.230

0.345

0.627

Q119LF-021-00

1/2"

2.362

1.339

3.268

0.350

0.471

0.627

Q119LF-043-00

3/4"

2.618

1.437

3.268

0.530

0.667

0.627

Q119LF-100-00

1"

3.350

2.098

4.685

0.710

0.856

0.797




Machining Process



Work Shop




Why Choose US



We control the material wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
