JIS-10K/16K Ductile Iron Gate Valve

JIS-10K/16K Ductile Iron Gate Valve Admin Edit

24.0~25.0 USD
Min. Order: 50 Piece/Pieces
Trade Term: FOB,CFR,CIF,EXW
Payment Terms: L/C, D/P, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 32000 Set/Sets per...
Packing: Valves are wrapped in... Delivery Date: stock or 15 days
Power: Manual Standard or Nonstandard: Standard
Pressure: Medium Pressure Structure: Gate
Material: Casting Temperature of Media: Medium Temperature
Media: Water Brand Name: xbfm/ OEM
Usage: Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control Application: Industrial Usage, Water Industrial Usage, Household Usage
Certificate:: API.ISO.Ce.Ts, Specification: 11/2"-24"
Thread Position of Valve Rod:: Inside Gate Valve Standard: JIS
Size:: Dn40-Dn600 HS Code: 8481804090, 8481804090
Transport Package: Plywood Case, Woven Bags

Product Description

JIS-10k/16k ductile  iron gate valve, cast iron gate valve,JIS-10k/16k cast iron gate valve, JIS-10k/16k cast iron gate valve rising stem

About us:
Our factory is specialized in valves' production. As one of the biggest and most professional manufacturer and exporter majored in valves, we assure that we can provide our products with cheapest price, good quality and best service. If you like, welcome to our factory and have a look!


Details as below:

Item: JIS-10k/16k cast iron gate valve( rising stem)
Standard: JIS
Body: Cast iron or ductile iron
Seatring: Cast iron/cast bronze/stainless steel
Disc: Cast iron or ductile iron
Stem: Stainless steel
Bonnet: Cast iron or ductile iron
Packing: Not asbestos
Glad: Ductile iron
Handwheel: Cast iron or ductile iron
Size: Dn40~dn400
Nominal pressure: 10k, 16k

Aplication:
1. Face to face is according to JIS b2002
2. Flange drilled is according to JIS b2212 / 2213

OEM is welcomed!

Any questions or more details, please feel free to contact me!

DN40506580100125150200250300350400450500

1.5"2"2.5"3"4"5"6"8"10"12"14"16"18"20"
L165180190200230250270290330350381406432457
H245252270290365420455575486782945135016201945
D(10K)140155175185210250280330400445490560620675
D(16K)140155175200225270305350430480540605675730


Machining Process

Other products

Why Choose US


We control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.

Contact to this supplier


PRODUCT DETAIL ANSI-125psi/150psi Cast Iron Gate Valve (Rising Stem)

ANSI-125psi/150psi Cast Iron Gate Valve (Rising Stem)

CGV02
PRODUCT DETAIL Non-Rising Stem Metal to Metal Seated Gate Valves DIN 3352-F4

Non-Rising Stem Metal to Metal Seated Gate Valves DIN 3352-F4

CGV07
PRODUCT DETAIL Non-Rising Stem Ductile Iron Metal Seated Gate Valve DIN3352-F4

Non-Rising Stem Ductile Iron Metal Seated Gate Valve DIN3352-F4

DGV07
PRODUCT DETAIL ANSI-125psi/150psi Ductile Iron Gate Valve

ANSI-125psi/150psi Ductile Iron Gate Valve

DGV02
PRODUCT DETAIL Ductile Iron Gate Valve

Ductile Iron Gate Valve

DGV03
PRODUCT DETAIL ANSI-125/150 Cast Iron Gate Valve

ANSI-125/150 Cast Iron Gate Valve

DGV04

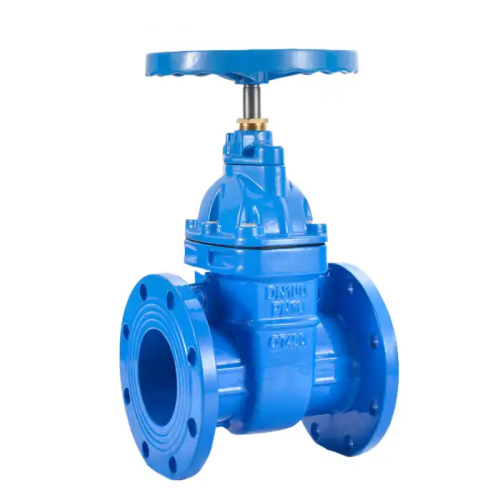

PRODUCT DETAIL ANSI-125/150 Ductile Iron Gate Valve Non Rising Stem

ANSI-125/150 Ductile Iron Gate Valve Non Rising Stem

DGV05

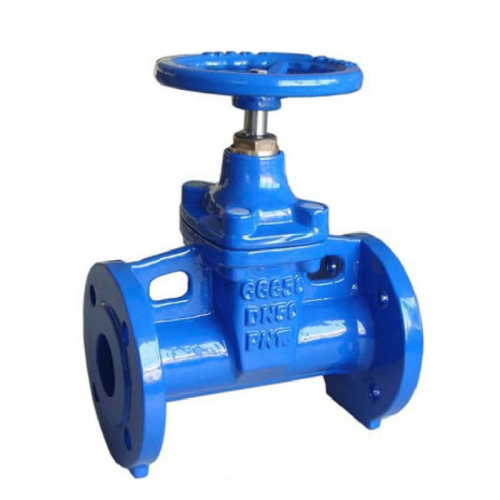

PRODUCT DETAIL Non-Rising Stem Ductile Iron Metal Seated Gate Valve DIN3352-F5
