Pn16 Dn200 Ductile Iron Wafer Type Dual Disc Check Valve

Model: DICV05
Place of Origin: Zhejiang,China (Mainland)
Power: Others
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Check
Material: Others
Temperature of Media: Others
Media: Water
Brand Name: xbvalve
Size: Dn40~Dn900
Delivery Time: 20~40 Days, Depend on The Quantity
Raw Material: Ci/Di/CF8/CF8m/C95400/Wcb
Transport Package: Export Polywood Case
Flow Direction: Unidirection
Application: Industrial Usage, Water Industrial Usage, Household Usage
Inch: 1-1/2 "~24"
Certificate: ISO, Ce .API RS
Specification: DN40-700

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:28.0~30.0 USDProduction Capacity:30000PCS/Year
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/TDelivery Date:stock or 15 days
Min. Order:10 Piece/Pieces
Means of Transport:Ocean, Air, Land

Dual Disc Check Valve ,PN16 DN100 Ductile Iron  spring loaded dual disc wafer check valves, Wafer Type Dual Disc Check Valve /Ductile iron Check Valve ,Dual Disc Check Valve ,PN16 DN100 Ductile Iron  spring loaded dual disc wafer check valves, Wafer Type Dual Disc Check Valve /Ductile iron Check Valve ,


Product Feature

  • Centerline structure, short face to face length, small volume and light weight.

  • Unobstructed flow passage, small fluid resistance.

  • Disc uses the spring to load, its quick closedown can effective reduce the hammer pressure.

  • The sealing property is good, the closure does not have noise and can meet the requirement of zero leakage.

  • Easy installation, can be used in both horizontal and vertical pipes.



Technical Parameters
Nominal diameter(mm)50~30050~300
Nominal pressure(Mpa) 1.0 1.6
Testing pressureShell(Mpa)1.52.4
Seal(Mpa)1.11.76
Suitable temperature(°C)-40°C~200°C
Suitable mediumDrinking water,sewage,seawater,food,medicines,gas,oil



Main Raw Material
BodyDiscStemSeatSpring
Cast iron

Plated ductile

iron

Stainless

steel

EPDM/NBRSS304
Ductile ironCF8WRAS-EPDMSS316
Carbon steelCF8MViton
Stainless steelAluminum bronzecustomisedSilicon
PS:Vulcanized seat


Reference Standard
Design standardBS5153
Testing standardAPI 598
End flange standardDIN PN10 / PN16,ANSI 125# / 150#,BS4504 PN10 / PN16
Face to face standardEN558-1 16 Series

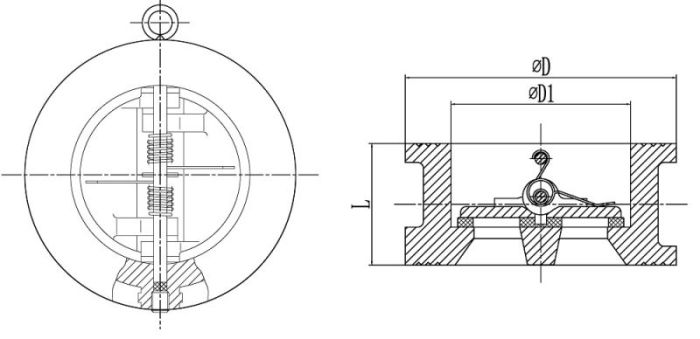

Overall Dimension and Weight


SizeΦDΦD1ΦD2ΦD3TL

Weight

(kg)

DIN PN10DIN PN16ANSI 150#
DN501071071026592693431.5
DN6512712712178105823.5462.4
DN8014214213494124993.5643.6
DN1001621621721171531234645.7
DN1251921921941451821524707.3
DN1502182182191702081784769
DN2002732732762242662314.58917
DN2503283293372653282714.511426
DN3003783843843103743184.511437
