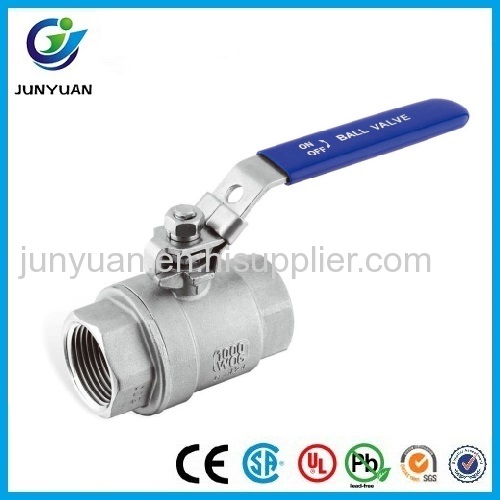

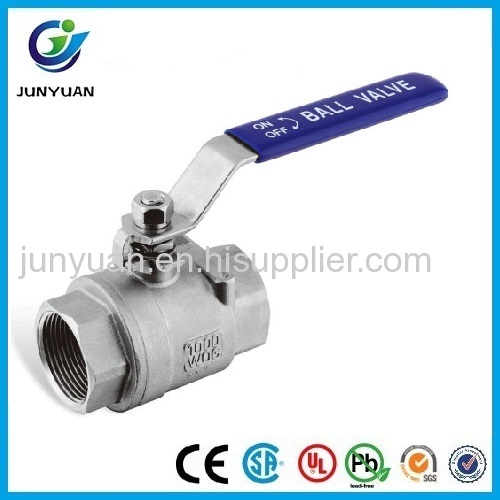

REDUCE PORT BALL VALVE 1000PSI

Model: JY0085
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Stainless Steel
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JUNYUAN
Material: Stainless steel
Size: 1/4"--1"
Thread Connection: Female Thread,BSP.NPT
Working Pressure: PN25
Technical: Forged
Certificate: ISO9001, CE,ACS.UL,CSA
Brand: JY or Professional OEM
Working Temperature: -10-110℃
HS Code: 8481804090
Model Number: JY0085

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.8 USDProduction Capacity:10 0000pcs per month
Trade Term:FOB,CFR,CIF,DDP,DAP,CIP,CPT,FCA,EXWPacking:Polybag, Inner Box,...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:Shipped in 35 days...
Min. Order:3000 Piece/Pieces
Means of Transport:Ocean, Air, Land






Features

 Product Description :

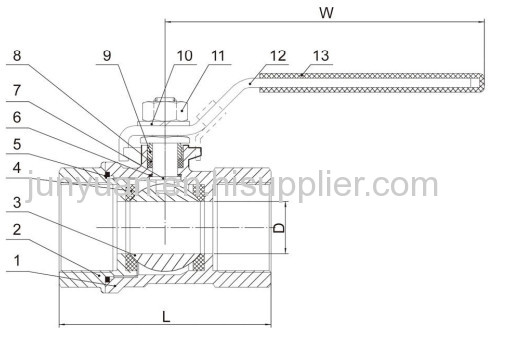

Raw material


ITEMDESIGNATIONQTYMATERIAL
1BODY1CF8/CF8M
2CAP1CF8/CF8M
3BALL1CF8/CF8M
4BALL SEAT2RPTFE
5JOINT GASKET1PTFE
6THRUST WASHER1PTFE
7O-RING2NBR
8STEM PACKING1PTFE
9STEM1304/316
10NUT1304
11HANDLE2304
12HANDLE SLEEVE1PVC

Size


SIZE1/4"3/8"1/2"3/4"1"
D889.212.515
L3941465565
H26.526.528.331.534
W22.822.822.822.822.8
S212124.53138




Production & Testing




Packaging





Certificate

Sale and Market




Why choose us

We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
