REDUCE PORT BALL VALVE 800PSI

Model: JY0084
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Stainless Steel
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JUNYUAN
Material: Stainless steel
Size: 1/4"--1"
Thread Connection: Female Thread,BSP.NPT
Working Pressure: PN25
Technical: Forged
Certificate: ISO9001, CE,ACS.UL,CSA
Brand: JY or Professional OEM
Working Temperature: -10-110℃
HS Code: 8481804090
Model Number: JY0082

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.8 USDProduction Capacity:10 0000pcs per month
Trade Term:FOB,CFR,CIF,DDP,DAP,CIP,CPT,FCA,EXWPacking:Polybag, Inner Box,...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:Shipped in 35 days...
Min. Order:3000 Piece/Pieces
Means of Transport:Ocean, Air, Land

2PC REDUCE PORT BALL VALVE 800PSI







Features

 Product Description :

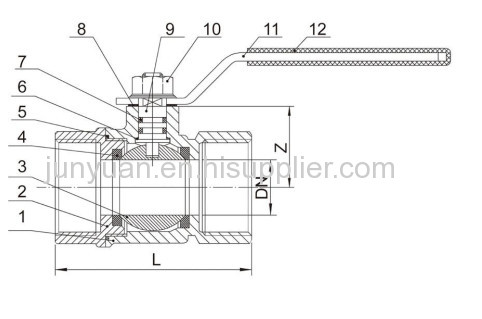

Raw material


ITEMDESIGNATIONQTYMATERIAL
1BODY1CF8/CF8M
2CAP1CF8/CF8M
3BALL1CF8/CF8M
4BALL SEAT2RPTFE
5JOINT GASKET1PTFE
6THRUST WASHER1PTFE
7O-RING2NBR
8STEM PACKING1PTFE
9STEM1304/316
10NUT1304
11HANDLE2304
12HANDLE SLEEVE1PVC


Size


ITEM15A20A25A32A40A50A
L48.558.5697989100.5
DN101520253139
S253038475365
Z2123.531334147



Production & Testing




Packaging





Certificate

Sale and Market




Why choose us

We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
