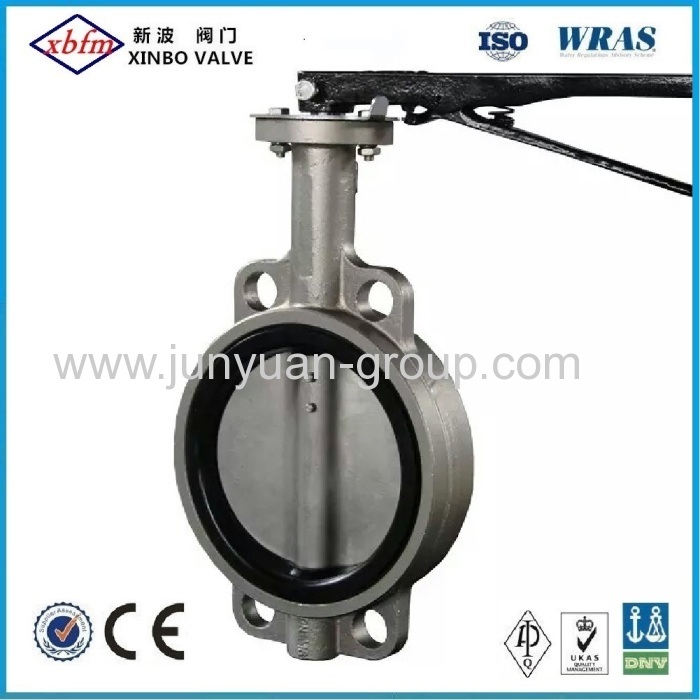

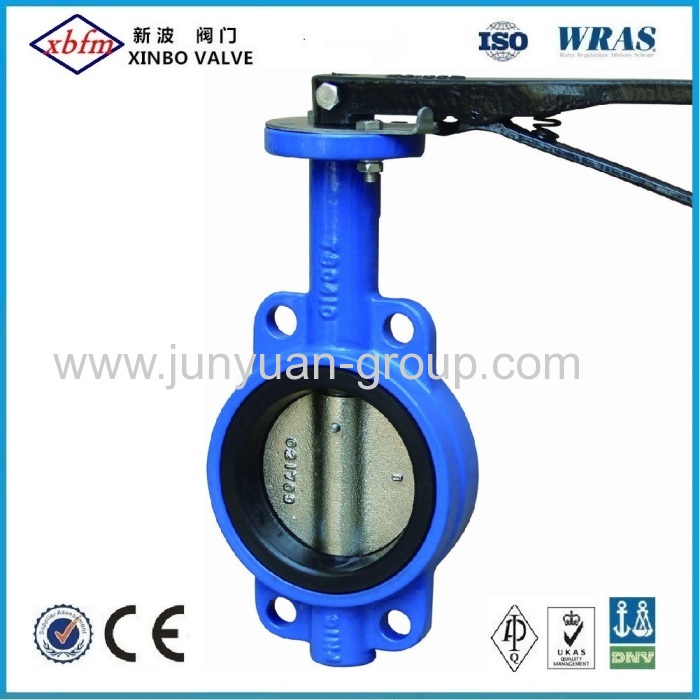

Wafer Type Centreline Butterfly Valve (without Pin)

Model: BFV-WB01
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Low Pressure
Structure: Butterfly
Material: Casting
Temperature of Media: Low Temperature
Media: Water
Brand Name: JUNYUAN
Connection Form: Wafer
Seal Form: Force Sealed
Material of Seal Surface: Soft Sealed
Application: Industrial Usage, Water Industrial Usage, Household Usage
Inch: 2"-14"
Disc: Di/CF8/CF8m/C95400
Seat: NBR/EPDM/PTFE
Standard: BS/DIN/ANSI/JIS /GB .. No Standard
Specification: Dn15-Dn1200
Size: Dn50-Dn350

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:4.5~5.0 USDProduction Capacity:100000 PCS/Year
Payment Terms:L/C, D/P, T/T, WUPacking:Valves are wrapped in...
Min. Order:100 Piece/PiecesDelivery Date:stock or 15 days
Means of Transport:Ocean, Air, Land

Product Description

Wafer Type Centreline Butterfly Valve (without Pin)Wafer Type Butterfly Valve
BS/DIN/ANSI/JIS Wafer Type Butterfly Valve


Specifications

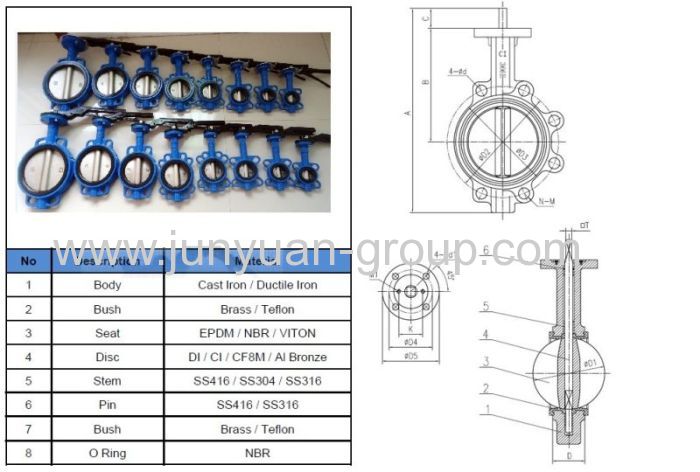

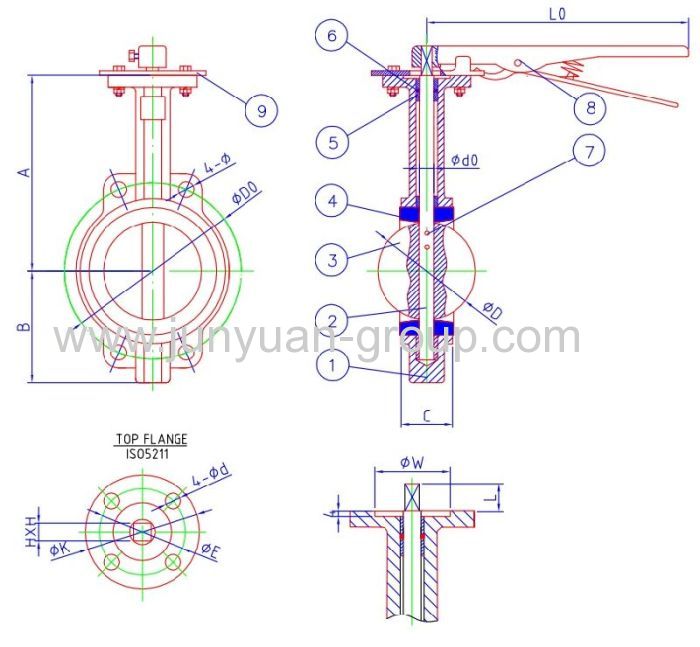

NO.PARTS  NAME MATERIALQTY
1BODYGGG501
2STEMSS4161
3DISCGGG501
4SEATEPDM1
5BUSHINGP.T.F.E.4
6O-RINGEPDM1
7PINSS4162DNLY 2-5 ONEPN
8LEVERCast Iron1
9INDICATORCARBON STEEL1
TEST
PRESSURE

SHELLSEAL

HYDROSTATIC24 Kg/cm217.6 Kg/cm2

AIR

STANDARDDESIGN CODEBS 5155

INSPECTION & TESTDIN 3230 PART 3

END STANDARDDIN PN16

FACE TO FACEDIN 3202 K1
TITLE : LEVER WAFER BUTTERFLY VALVE
DN50-DN300
APPROVED
DWG NO.REV
CHECKED


DEAWN


DESIGNED
SCALE
UNITmm

SIZEABCDLOdOISO5211LKE4-dWHXHD1/PN164-
12"33724276.9301.650531.6F10401401024-1270.2522X224104-2630
10"29220367.2250.550528.45F10401251024-1270.2517X173554-2630
8"26017561.6202.535522.1F10401251024-1255.2514X142954-2230
6"22613955.8155.126618.92F073090704-955.2514X142404-2245
5"21312755123.326618.92F073090704-955.2511X112104-1845
4"2001145210426615.77F073090704-955.2511X111804-1845
3"1819545.878.826612.6F073090704-955.2511X111604-1845
2.5"1758945.864.526612.6F073090704-955.2511X111454-1890
2"161804252.926612.6F073090704-955.2511X111254-1890

Wafer butterfly valve
Certificate: ISO9001, CE0035, WRAS


Design: EN593/BS5155/MSS SP-67
Class: PN10/16, 125Lbs, JIS10K
Face to face: API 609; EN558 1-20 Series
Flange Connection: GB, DIN, BS, JIS, ANSI
Testing: API 598
Size: DN40-DN1200


Working pressure: DN40-DN300: PN10-16
Operator: Aluminum lever / DI handle / steel / Carben Steel
Material:
Body: Cast Iron (ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200); Ductile Cast Iron (ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10); Stainless Steel (ASTM A351 CF8, CF8M; CF3, CF3M; Carbon Steel: ASTM A216 WCB)
Stem: Zinc Plated Steel; Stainless Steel (ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416)
Taper Pin: Stainless Steel (ASTM A276 Type 304, Type 316; EN 1.4501)
Seat: NBR, EPDM, Neoprene, PTFE, Viton
Disc: Nickel plated Ductile Cast Iron (ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10)
Stainless Steel (ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501); AL-Bronze: ASTM B148 C95400
O-Ring: NBR, EPDM, Neoprene, Viton
Bushing: PTFE, Nylon, Lubricated Bronze
Key: Carbon Steel
