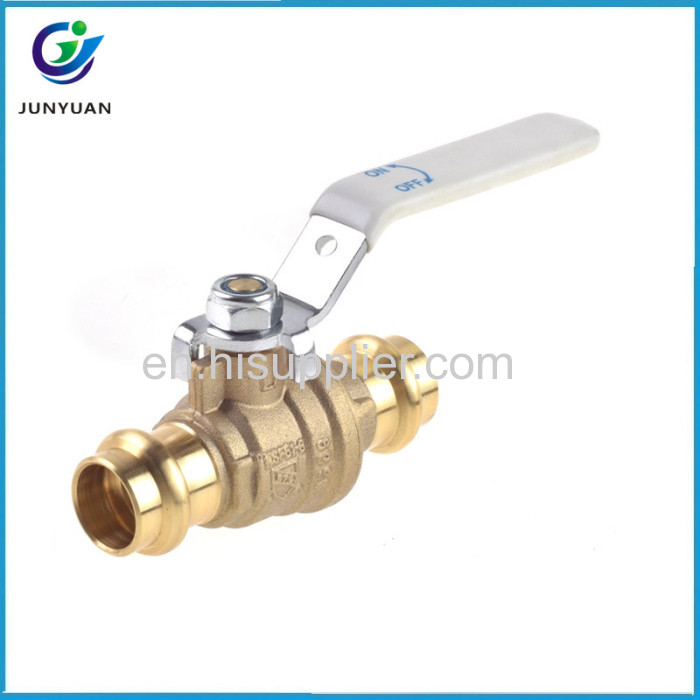

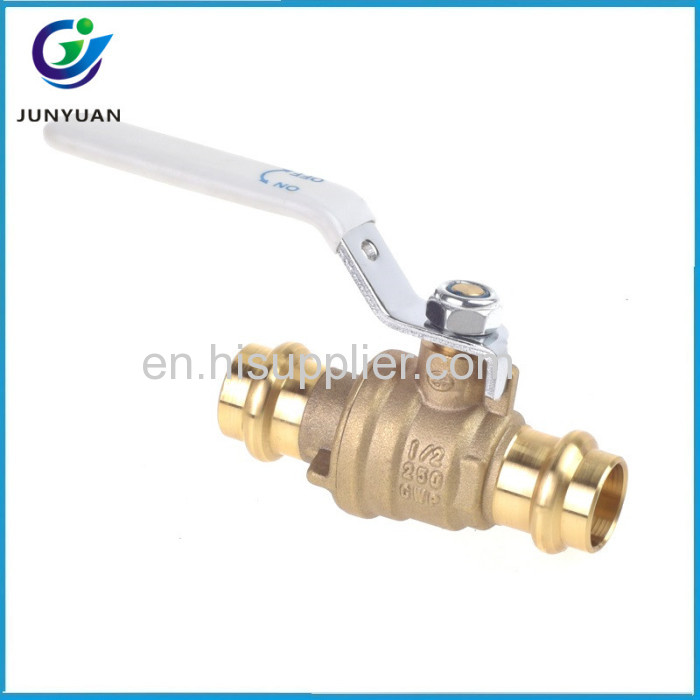

Wholesale price 90 degree 3 inch brass lockable cock ball valve

Model: JY178
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Brass
Temperature of Media: Medium Temperature
Media: Water
Brand Name: JY/OEM
Port Size: 1/4"-4''
Application: General
Body material: Lead Free Barss
Type: Brass ball valve
Color: Brass
Connection: Female Thread
Lever /handle: Chroma Plating Steel
Stem Nut: Nickel Plating Steel
O-ring: EPDM
Rubber Seat: Rubber
  video

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.5~10.0 USDProduction Capacity:32000 Set/Sets per...
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, WU, D/P, T/TDelivery Date:stock or 15 days
Min. Order:1000 Piece/Pieces
Means of Transport:Land, Ocean, Air

Wholesale price 90 degree 3 inch brass lockable                  cock ball valve

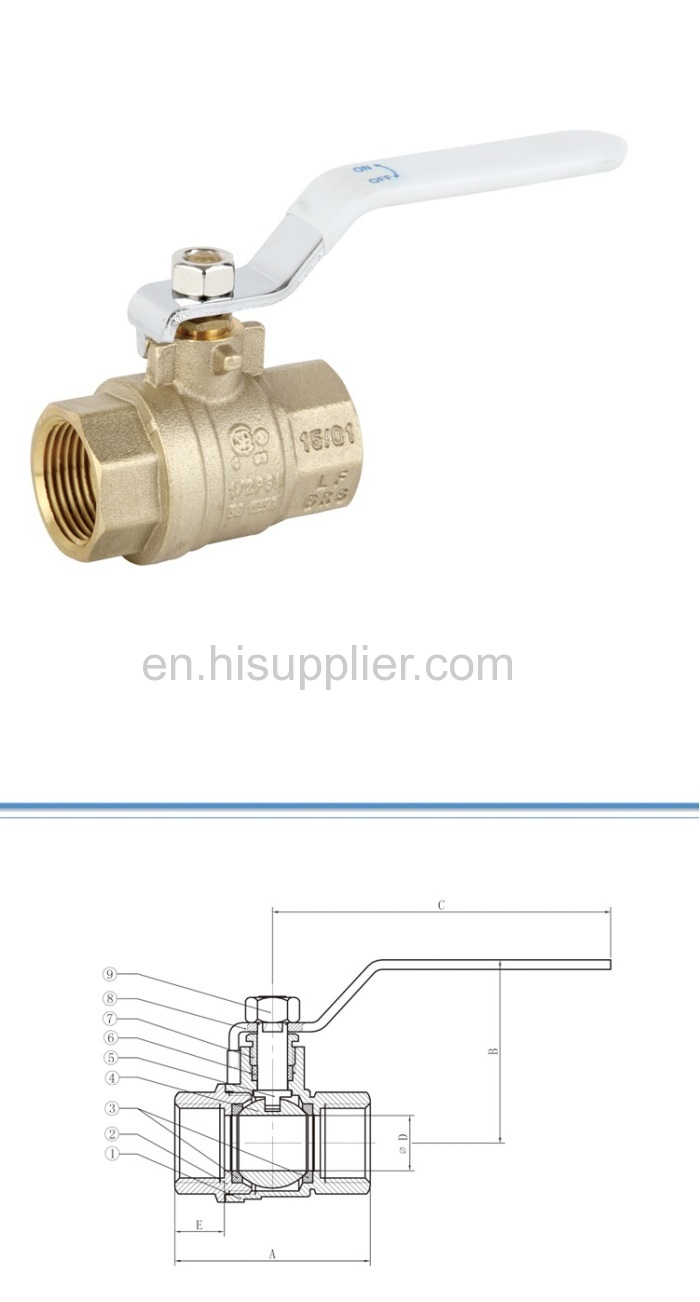

Description of Product


UlMtNS N

Part No.

Size

A

B

C

D

L

Q945LF-021-00

1/2"

3.07

1.82

3.54

1.72

0.58

0.87

Q94SLF-043-00

3/4"

3.58

1.97

3.54

1.97

0.79

0.98

Q945LF-100-00

r

3.9

2.01

4.33

2.07

0.98

1.06

Q945LF-141-00

11/4'

4.16

2.57

4.33

2.16

126

1.06

Q945LF-121-00

11/2'

5.2

3.18

5.91

2.83

1.57

1.26

Q94SLF-200-00

2"

6.23

148

5.91

3.25

1.97

1X6

Q945LF-221-00

2 1/2'

7.69

4.74

9.45

3.26

2.52

1.57

Q945LF-300-00

3'

8.15

4.92

9.45

3.69

2.91

1.77

Q945LF-400-00

4-

9.65

5.65

9.45

4.61

3.9

2.13






Item   Part        Material

1BodyLead Free Brass
2End CupLead Free Brass
3Ball SeatPTFE
4BallLead Free Brass/Stainless Steel
5StemBrass
6O-ringNBR
7Lever HandleNickel Plating Steel
8Stem NutNickel Plating Steel
9O-ringEPDM
10O-ringNBR

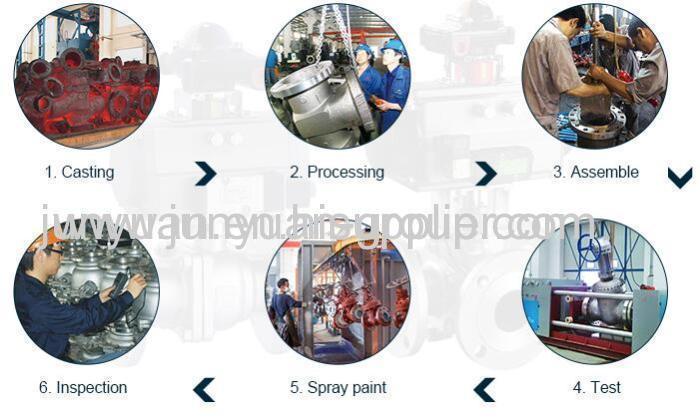

Machining Process

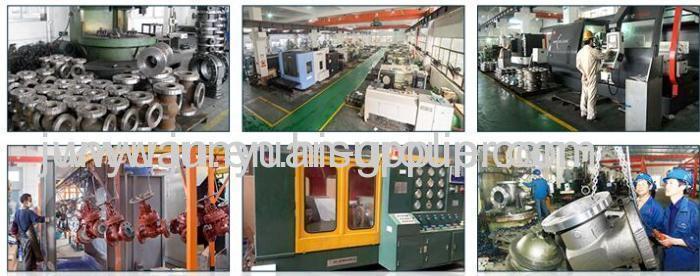

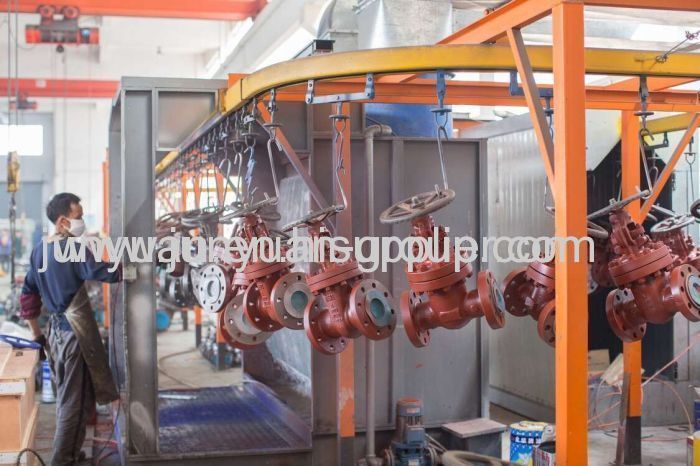

Work Shop




Why Choose US



We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
