brass ball valve with butterfly handle

Model: JY0001
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Brass
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JUNYUAN
Material: Brass
Size: 1/2"--4"
Thread Connection: Female Thread,BSP.NPT
Working Pressure: PN25
Technical: Forged
Certificate: ISO9001, CE,ACS.UL,CSA
Brand: JY or Professional OEM
Working Temperature: -10-110℃
HS Code: 8481804090
Model Number: JY0001
  video

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOB,CFR,CIF,EXWProduction Capacity:10 0000pcs per month
Payment Terms:L/C, WU, D/P, T/TPacking:Polybag, Inner Box,...
Means of Transport:Land, Ocean, AirDelivery Date:Shipped in 35 days...

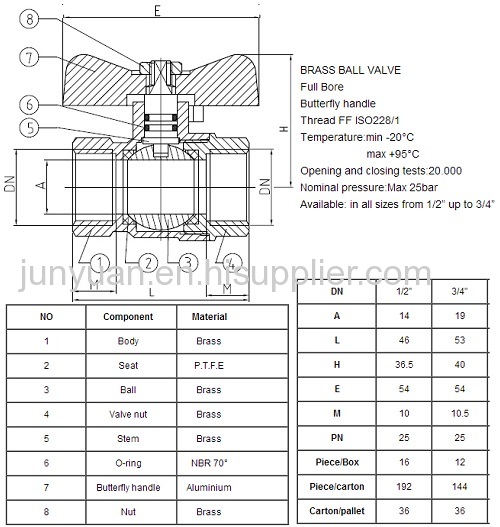

 High Quality Brass Ball Valve with Butterfly Handle

  •  Product Description :

  • Commodity Name:   Brass Ball Valve with Butterfly Handle , water meter ball valve/lockable ball for water meter/Anti-theft Ball Valve ,Brass forged body, brass ball chrome plated,brass stem and brass handle.Full port, PTFE seals.



  • Material: Forged Brass ( CW617N, CW614 ,CW602N,ASTM C37700)

  • Size: 1/4'',3/8'',1/2'',3/4'',1'',11/4'',11/2'',2'',21/2'',3'',4''

  • Technical Specification:

  • Norminal pressure: 3.0Mpa

  • Tested Pressure: 2.0Mpa

  • Working medium: Water, oil, gas

  • Working temperature: -20° C≤ T≤ 120° C

  • Thread standard: According  ISO228, ISO7/1, DIN2999/

  • For the handle, it could be changed to Zinc alloy and aluminum handle

  • Package details: Each valve by one polybag, inner box, Cartons with wooden pallets

  •

  • Application: House connection and drinking meter networks, water pipe connection and flow control

  • brass forged body, brass ball chrome plated,, brass stem and brass handle. For water meter before or after water meter PTFE packing with free nut and DECA fittings.Brass lockable ball valve for water meter with female thread, with brass body, anti-theft short or long handle.

  • Welcome to your inquiry anytime,

  • brass ball valve with butterfly handlebrass ball valve with butterfly handlebrass ball valve with butterfly handle




  • Why choose us

  • We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

  • Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

    We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

  • burst pressure after brading.

    We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

  • tools are all imported from Japan.

    We use Techmaflex Crimping Machine which is imported from France. This machine has

  • accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
