|Payment & Shipping Terms ||Supply Capacity |
|Unit Price:||4.5~5.0 USD||Production Capacity:||100000 PCS/Year|
|Trade Term:||FOB,CFR,CIF,EXW||Packing:||Valves are wrapped in...|
|Payment Terms:||L/C, D/P, T/T, WU||Delivery Date:||stock or 15 days|
|Min. Order:||100 Piece/Pieces|
|Means of Transport:||Ocean, Air, Land|

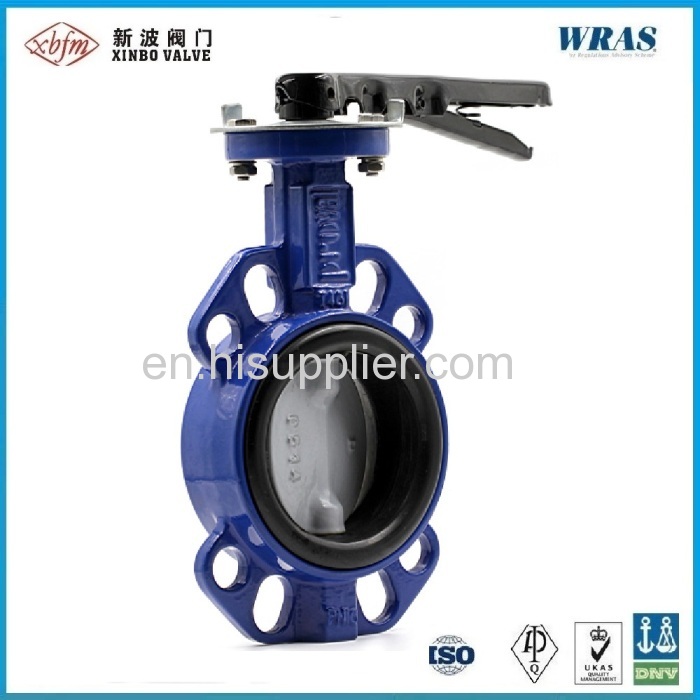

Wafer Type Pinless Non-backed Seat Butterfly Valve

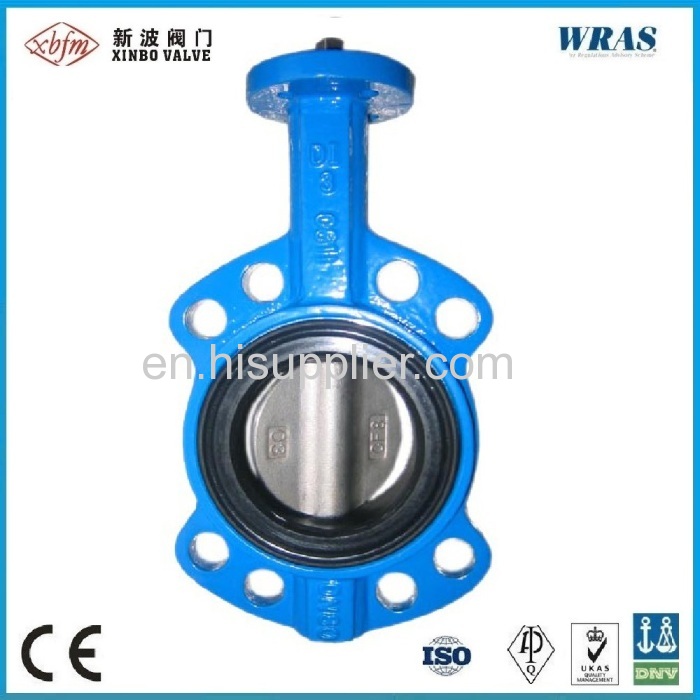

Wafer Type Butterfly Valve
BS/DIN/ANSI/JIS Wafer Type Butterfly Valve
|Nominal pressure(Mpa)||1.0 ||1.6|
|Suitable medium||Drinking water,sewage,seawater,food,medicines,gas,oil|
Main Raw Material
|Cast iron||Plated ductile iron||Stainless steel||EPDM/NBR||lever|
|Ductile iron||CF8||WRAS-EPDM||gearbox and handwheel|
|Stainless steel||Aluminum bronze||customised||Silicon||Pneumatic|
|PS:1. Replaceable seat 2. Pinless disc|
|Design standard||API 609|
|Testing standard||API 598|
|Top flange standard||ISO5211|
|End flange standard||DIN PN10 / PN16,ANSI 125# / 150#,BS4504 PN10 / PN16,JIS B2220 10K|
|Face to face standard||API 609,EN558-1 20 Series,BS5155,DIN3202 K1|

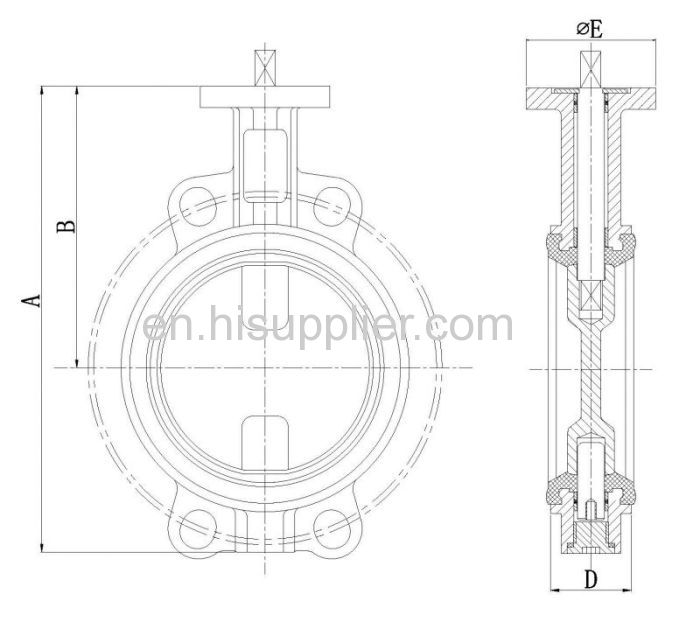

Overall Dimension and Weight
Why Choose US
We are a professional manufacturer and supplier of valves, pipes and fittings which are widely used for water, oil and gas pipe lines
We have been supplying the valves and fittings to Europe, Asia, Middle East countries and Amercian markets for 15 years

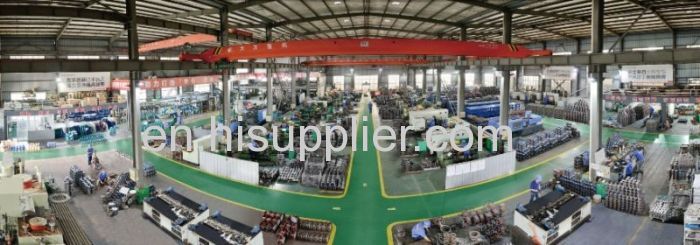

Our factory has obtained ISO9001, CE0035 and API approval certificates for our valves and fittings made of iron, steel and copper alloy with design to DIN, BS, ANSI, JIS standard
We can also manufacture valves and fittings according to client's design
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.
We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.
We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
We promise the quality for 24 months and also supply custom service
Long service life. Standing the test of thousands opening/closing operation.
Wide selection of materials, applicable for various media.
