|Payment & Shipping Terms ||Supply Capacity |
|Unit Price:||0.9~1.0 USD||Production Capacity:||1000 000 Set/Sets Per...|
|Trade Term:||FOB,CFR,CIF,EXW||Packing:||Valves are wrapped in...|
|Payment Terms:||L/C, D/P, T/T||Delivery Date:||stock or 15 days|
|Min. Order:||1000 Piece/Pieces|
|Means of Transport:||Ocean, Air, Land|

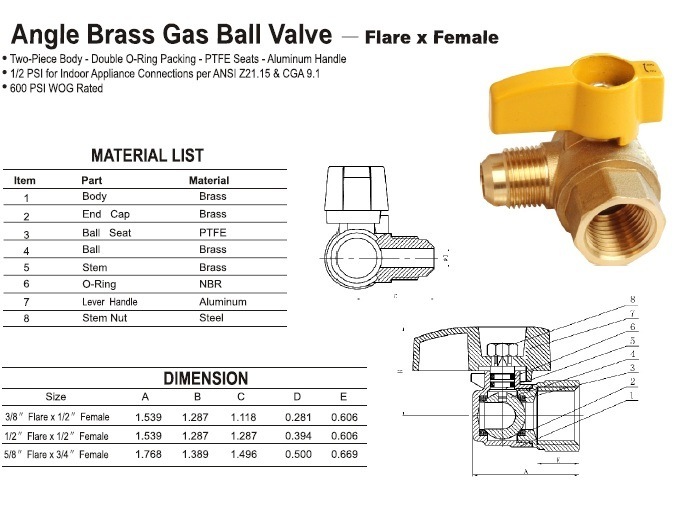

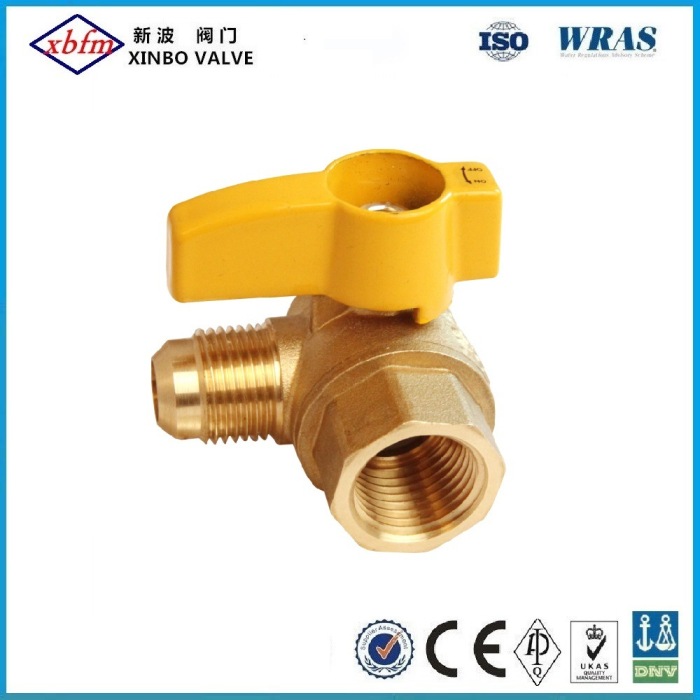

Angle Brass Gas Ball Valve-Flare x Female Brass Gas Ball Valve -Female x Female Square Head ,Forged Brass Ball Valve ,Brass Ball Valve With Lever steel Handle
High Quality Brass Ball Valve
Commodity Name: Brass Ball Valve with Butterfly Handle , water meter ball valve/lockable ball for water meter/Anti-theft Ball Valve ,Brass forged body, brass ball chrome plated,brass stem and brass handle.Full port, PTFE seals.
| Material||Forged Brass ( CW617N, CW614 ,CW602N,ASTM C37700) |
| Surface|| Natural brass/ chrome plated |
| Size|| 1/4" to 4"|
| 100% tested with 0.6MPa - 0.8MPa by air|
| Connection|| Female thread x Female thread ,FXM,MXM|
| Valve guarantee|| 3 Years|
| Samples time|| 3 days - Current type|
15 days - New mould
| OEM Acceptable|| Yes /ODM ,|
| Place of origin|| Zhejiang,China(Mainland)|
Material: Forged Brass ( CW617N, CW614 ,CW602N,ASTM C37700)
Norminal pressure: 3.0Mpa
Tested Pressure: 2.0Mpa
Working medium: Water, oil, gas
Working temperature: -20° C≤ T≤ 120° C
Thread standard: According ISO228, ISO7/1, DIN2999/
For the handle, it could be changed to Zinc alloy and aluminum handle
Package details: Each valve by one polybag, inner box, Cartons with wooden pallets
Application: House connection and drinking meter networks, water pipe connection and flow control
brass forged body, brass ball chrome plated,, brass stem and brass handle. For water meter before or after water meter PTFE packing with free nut and DECA fittings.Brass lockable ball valve for water meter with female thread, with brass body, anti-theft short or long handle.
Why Choose US
We control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

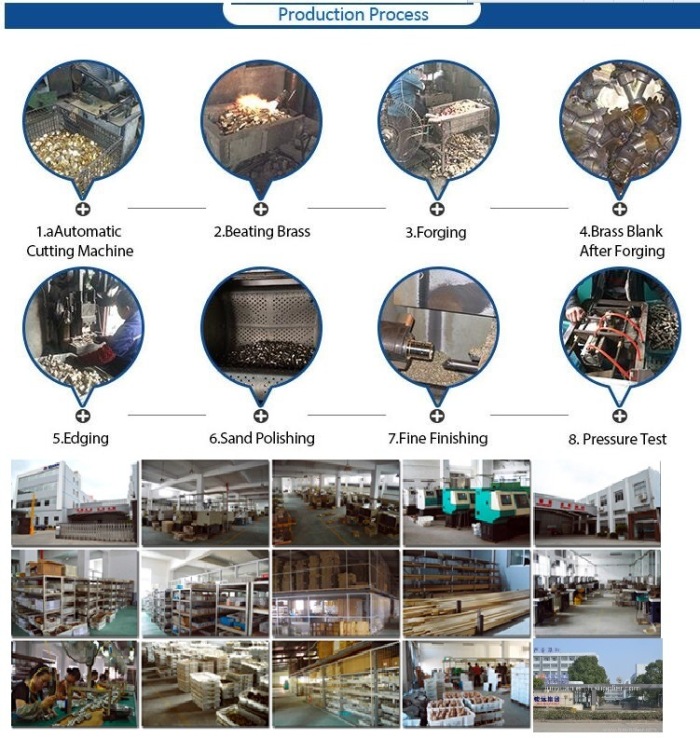

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.
We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
