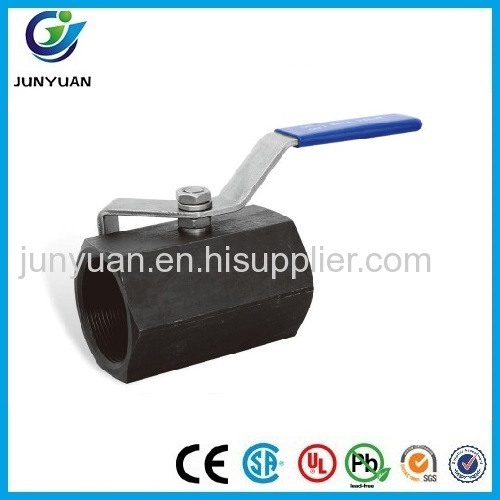

HEXGON BAR STOCK 2000PSI BALL VAVLE

Model: JY0082
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Stainless Steel
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JUNYUAN
Material: Stainless steel
Size: 1/4"--1"
Thread Connection: Female Thread,BSP.NPT
Working Pressure: PN25
Technical: Forged
Certificate: ISO9001, CE,ACS.UL,CSA
Brand: JY or Professional OEM
Working Temperature: -10-110℃
HS Code: 8481804090
Model Number: JY0082

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.8 USDProduction Capacity:10 0000pcs per month
Trade Term:FOB,CFR,CIF,DDP,DAP,CIP,CPT,FCA,EXWPacking:Polybag, Inner Box,...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:Shipped in 35 days...
Min. Order:3000 Piece/Pieces
Means of Transport:Ocean, Air, Land

1 PC HEXGON BAR STOCK 2000PSI BALL VAVLE






Features

 Product Description :

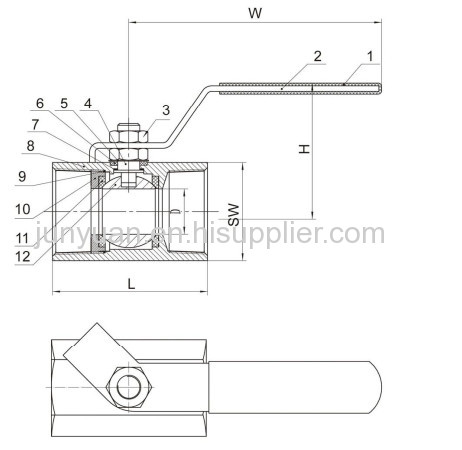

Raw material

ITEMDESIGNATIONQTYMATERIAL
1PLASTIC COVER1PLASTIC
2HANDLE1304
3STEM NUT2304
4STEM1304
5PACK RING1304
6 STEM PACKING1PTFE
7THRUST WASHER1PTFE
8BODY1CARBON STEEL
9BODY GASKET1PTFE
10CAP1WCB
11BALL SEAT1PTFE/RPTFE
12BALL1304


SIZE


SIZEθDLHWSW
1/4"543357320HEX
3/8"745387325
1/2"9.5625011530
3/4"12.5705811536
1"1585.56212941
1-1/4"20946412953
1-1/2"25101.57215060
2"321148015070


Production & Testing




Packaging





Certificate

Sale and Market




Why choose us

We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
