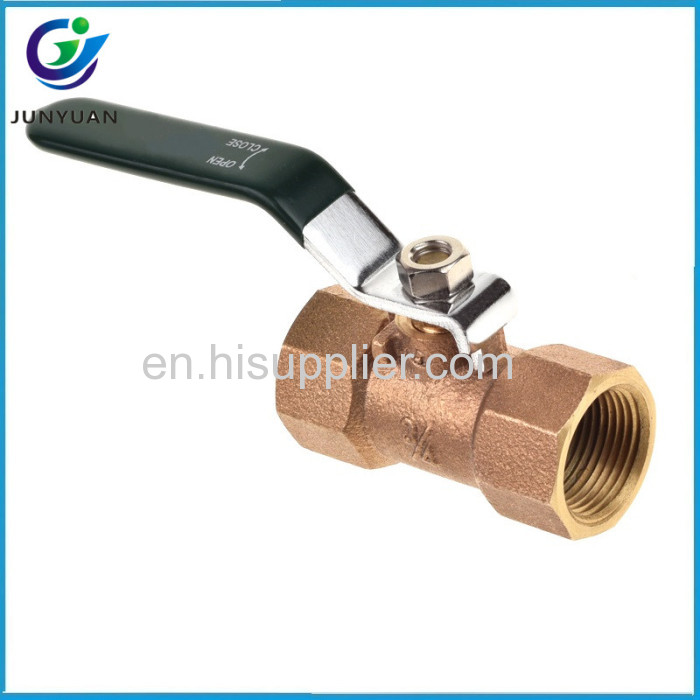

One piece body reduced port blowout proof stem PTFE seats bronze valve ball

Model: JY171
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Ball
Material: Brass
Temperature of Media: Medium Temperature
Media: Water
Brand Name: JY/OEM
Port Size: 1/4"-4''
Application: General

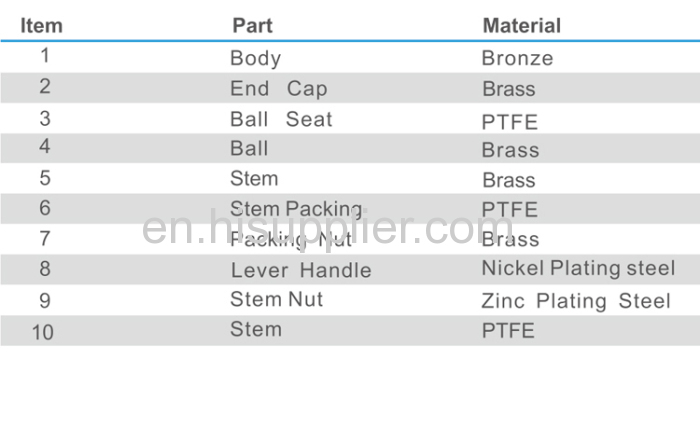

Body material: Bronze
Type: Bronze ball valve
End Cap: Brass
Color: Bronze
Connection: Female Thread
Ball: Brass
Stem Packing: PTFE
Lever Handle: Nickel Plating steel

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.5~10.0 USDProduction Capacity:32000 Set/Sets per...
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:stock or 15 days
Min. Order:1000 Piece/Pieces
Means of Transport:Ocean, Air, Land

One piece body reduced port blowout proof stem PTFE            seats bronze valve ball







Description of Product

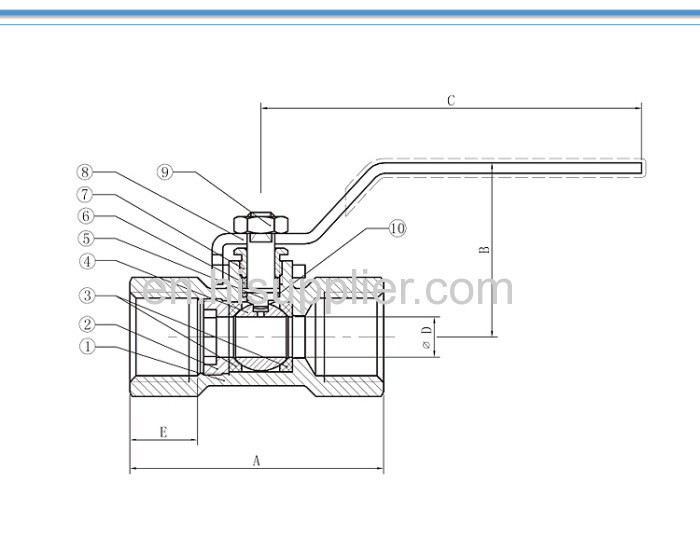

DIMENSION

Part No.

Size

A

B

C

D

E

Q114.041-00

1/4"

1.969

1.535

2.756

0.236

0.512

Q114-083-00

3/8"

1.969

1.535

2.756

0.236

0.512

Q114-021-00

1/2"

2.362

1.614

3.543

0.374

0.630

Q114-043-00

3/4"

2.638

1.752

3.543

0.472

0.669

Q114-100-00

1"

3.110

2.008

3.780

0.630

0.709

Q114-141 -00

1 1/4"

3.622

2.165

3.780

0.827

0.827

Q114-121-00

1 1/2"

3.742

2.638

4.528

0.984

0.827

Q114-200-00

2"

4.252

3.150

5.512

1.260

0.906






Machining Process


Work Shop



Why Choose US



We control the material of PTFE(Teflon) wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
