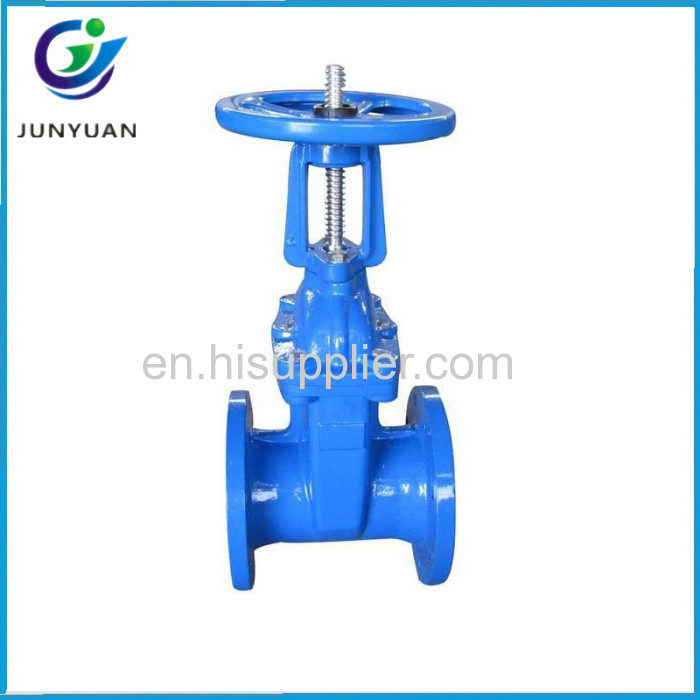

Resilient Seat Cast Iron 200mm Rising Stem Gate Valve with Handwheel

Model: JY137
Place of Origin: Zhejiang,China (Mainland)
Power: Manual
Standard or Nonstandard: Standard
Pressure: Low Pressure
Structure: Gate
Material: Casting
Temperature of Media: Normal Temperature
Media: Water
Brand Name: JY/OEM
Type: Rising Stem
End connection: Flange
Application: Oil and gas transportation, urban construction, water supply project
Certification: API,ISO,CE,TS
Seal: Soft seal

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.5 USDProduction Capacity:32000 Set/Sets per...
Trade Term:FOB,CFR,CIF,EXWPacking:Valves are wrapped in...
Payment Terms:L/C, D/P, T/T, WUDelivery Date:stock or 15 days
Min. Order:1 Piece/Pieces

Resilient Seat Cast Iron 200mm Rising Stem Gate Valve with Handwheel



Product Description

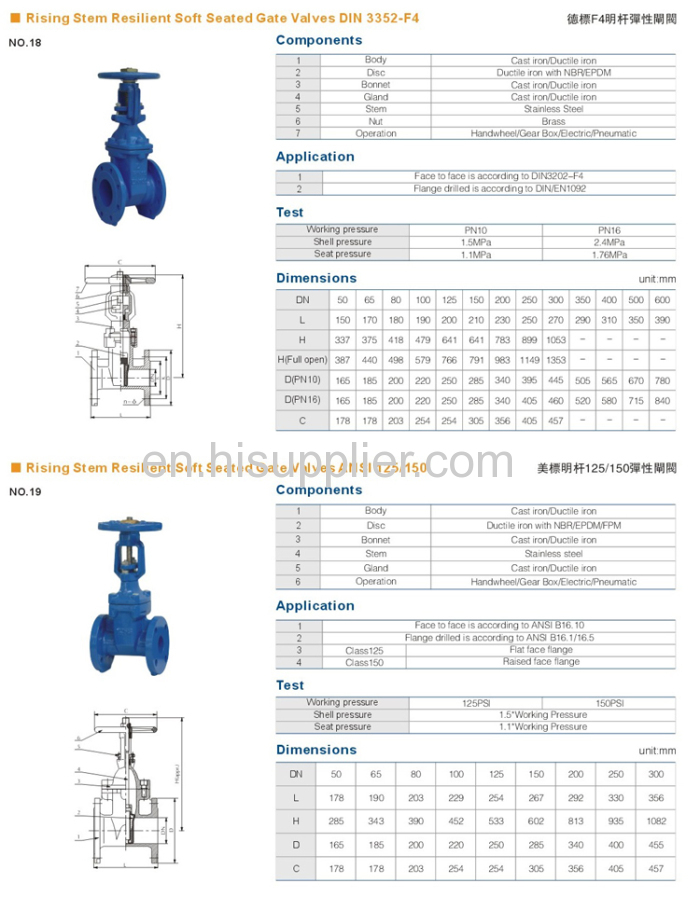

SPECIFICATIONS FOR STANDARD IRON GATE VALVES







Pressure rating and size:

PN10, PN16, CL125, CL 150, JIS 10K

DN50 to DN1000

2"~40"

Material:

Body : GG20, GG25, GGG40, GGG50

Disc  : GG20, GG25, GGG40, GGG50 + NBR/EPDM

Stem : F6a, SS304, SS316

Seat : NBR, EPDM, BRASS, BRONZE

Bonnet : GG20, GG25, GGG40, GGG50

Operated type

Handwheel, Gear, Electric, Bare shaft and etc.

Structure:

Rising stem or non-rising stem

Flange connection:

EN1092, ANSI B16.5, BS4504, JIS B2212

Medium:

Water

Temperature:

80°C

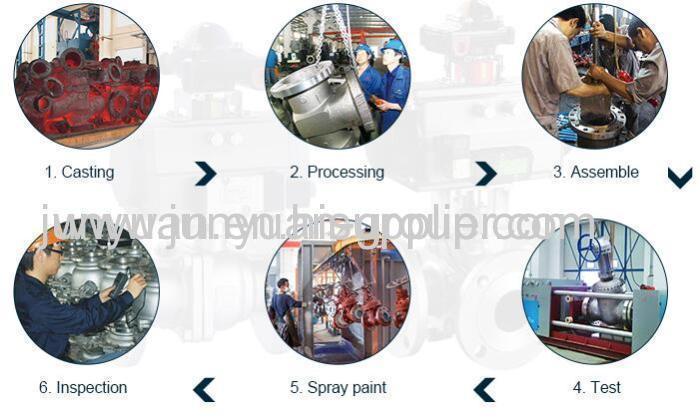

Machining Process

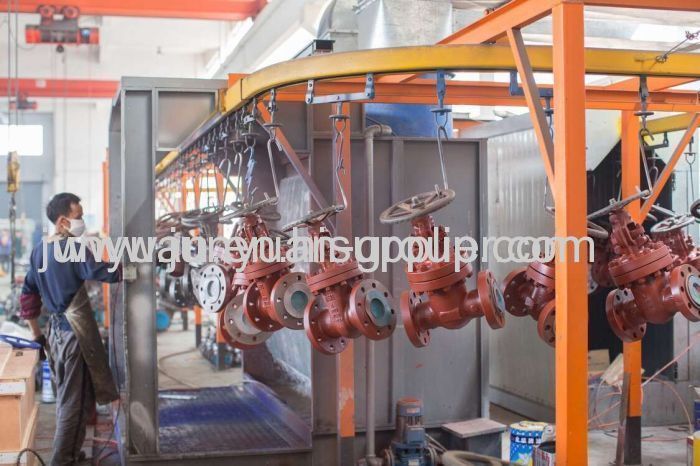

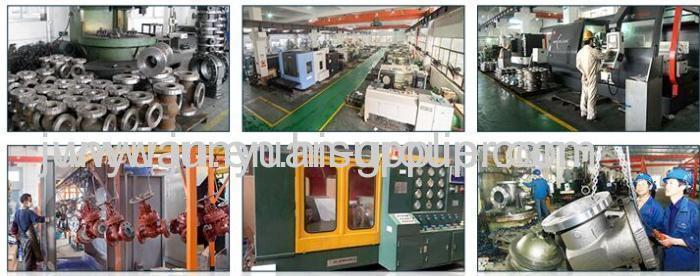

Work Shop




Other Product


Certificate


Sale and Market


Contact Imformation



Category: CAST IRON GATE VAVE

Related Category: WCB GATE VALVE  DUCUILE IRON GATE VALVE  BRASS FORGED GATE VALVE  BRONZE GATE VALVE
