| Min. Order: | 100 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,CIF,EXW |
| Payment Terms: | L/C, D/P, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 100000 PCS/Year |
| Packing: | Valves are wrapped in... | Delivery Date: | stock or 15 days |
|---|---|---|---|
| Power: | Manual | Standard or Nonstandard: | Standard |
| Pressure: | Low Pressure | Structure: | Butterfly |
| Material: | Casting | Temperature of Media: | Low Temperature |
| Media: | Water | Brand Name: | xbfm/ OEM |
| Material of Seal Surface: | Soft Sealed | Application: | Industrial Usage, Water Industrial Usage, Household Usage |
| Inch: | 2"-48" | Disc: | Di/CF8/CF8m/C95400 |
| Seat: | NBR/EPDM/PTFE | Standard: | BS/DIN/ANSI/JIS /GB .. No Standard |
| Size: | Dn50-Dn350 | HS Code: | 8481804090 |
| Shaft: | Ss420/SS316/Ss410 | Specification: | Dn15-Dn1200 |
Product Description
Wafer Type Pinless Backed Seat Butterfly Valve

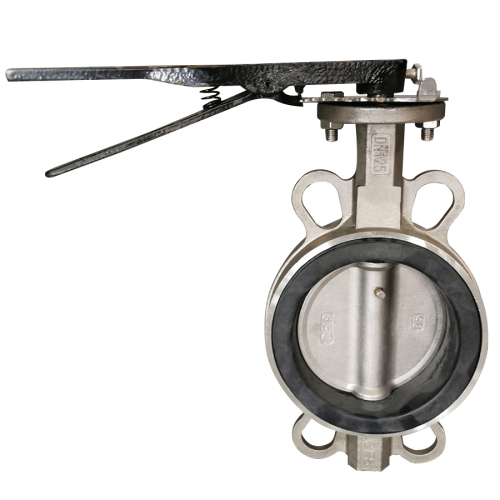

Wafer Type Centreline Butterfly Valve (without Pin)
Wafer Type Butterfly Valve
BS/DIN/ANSI/JIS Wafer Type Butterfly Valve
Product Feature
|
|
|
|
|
|
|
Technical Parameters
| Nominal diameter(mm) | 25~500 | 25~500 | ||
| Nominal pressure(Mpa) | 1.0 | 1.6 | ||
| Testing pressure | Shell(Mpa) | 1.5 | 2.4 | |
| Seal(Mpa) | 1.1 | 1.76 | ||
| Suitable temperature | -40°C~200°C | |||
| Suitable medium | Drinking water,sewage,seawater,food,medicines,gas,oil | |||
Main Raw Material
| Body | Disc | Stem | Seat | Actuator |
| Cast iron | Plated ductile iron | Stainless steel | EPDM/NBR | lever |
| Ductile iron | CF8 | WRAS-EPDM | gearbox and handwheel | |
| Carbon steel | CF8M | Viton | Electric | |
| Stainless steel | Aluminum bronze | customised | Silicon | Pneumatic |
| PS:1.Replaceable backed seat/PTFE seat 2. Pinless Nylon disc/Epoxy disc/PTFE disc | ||||
Reference Standard
| Design standard | API 609 | |||
| Testing standard | API 598 | |||
| Top flange standard | ISO5211 | |||
| End flange standard | DIN PN10 / PN16,ANSI 125# / 150#,BS4504 PN10 / PN16,JIS B2220 10K | |||
| Face to face standard | API 609,EN558-1 20 Series,BS5155,DIN3202 K1 | |||
| Size | A | B | D | Top Flange | ΦE | Weight(kg) |
| DN25 | 142 | 90 | 29 | F05 | 65 | 0.84 |
| DN40 | 156 | 92 | 33 | F05 | 65 | 1.29 |
| DN50 | 189 | 126 | 43 | F05 | 65 | 2.07 |
| DN65 | 202 | 133 | 46 | F05 | 65 | 2.68 |
| DN80 | 238 | 152 | 46 | F05 | 65 | 3.16 |
| DN100 | 276 | 170 | 52 | F07 | 90 | 4.90 |
| DN125 | 296 | 181 | 56 | F07 | 90 | 6.85 |
| DN150 | 324 | 196 | 56 | F07 | 90 | 7.85 |
| DN200 | 398 | 238 | 60 | F10 | 125 | 12.00 |
| DN250 | 456 | 258 | 68 | F10 | 125 | 18.50 |
| DN300 | 535 | 300 | 78 | F10 | 125 | 32.50 |
| Size | A | B | D | Top Flange | ΦE | DIN PN10 | DIN PN16 | ANSI 150# | Weight(kg) | |||
| 4-Φd | ΦD | 4-Φd | ΦD | 4-Φd | ΦD | |||||||
| DN350 | 580 | 320 | 78 | F10 | 125 | 4-22 | 460 | 4-26 | 470 | 4-28.4 | 476.2 | 41.30 |
| DN400 | 665 | 356 | 102 | F14 | 175 | 4-26 | 515 | 4-30 | 525 | 4-28.4 | 539.7 | 61.00 |
| DN450 | 720 | 380 | 114 | F14 | 175 | 4-26 | 565 | 4-30 | 585 | 4-31.8 | 577.8 | 79.00 |
| DN500 | 790 | 420 | 127 | F14 | 175 | 4-26 | 620 | 4-33 | 650 | 4-31.8 | 635.0 | 128.00 |
