| Min. Order: | 100 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,DAP,CIP,CPT,FCA,EXW |
| Payment Terms: | Paypal, L/C, D/P, T/T, WU, Money Gram |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air |
| Production Capacity: | 1000 000 Set/Sets Per Month |
| Packing: | poly bag, carton box, export pallet | Delivery Date: | 30days |
|---|---|---|---|
| Brand Name: | OEM | Material: | Brass |
| Application: | Gas | Origin: | Zhejiang, China |
| Transport Package: | Polybag, Inner Boxcarton and Wooden Pallet | Trademark: | OEM |
| HS Code: | 9026801000 |

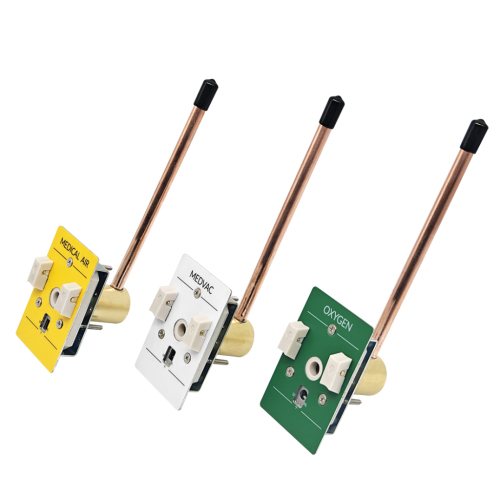

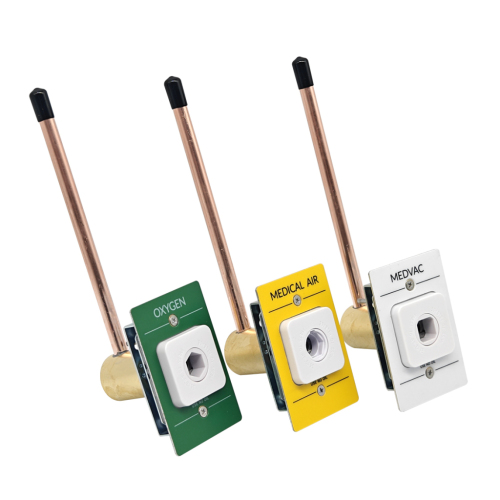

Ohmeda Style Medical Gas Outlet NFPA 99 Compliant Wall Mounted Terminal Unit for O2 Air Vacuum 100% Leak Tested
NFPA 99 & ISO 7396-1 Fully Compliant — Meets American and international medical gas pipeline standards; third-party test reports available for hospital project bidding.
Gas-Specific Color-Coded & Keyed Sockets — O₂ (Green), Medical Air (Yellow), Vacuum (Purple) with mechanical keying that physically prevents wrong-gas insertion, eliminating cross-connection risk at bedside.
Brass Internal Gas Block + Stainless Steel / Zinc Alloy Faceplate — Two material options: full SS304 for corrosion-resistant environments, or brass core with zinc alloy cover for cost-sensitive projects.
360° Swivel Quick-Connect Probe Insertion — Probe rotates freely after insertion, no hose kinking or strain; one-hand push-to-connect, pull-to-release, nurse-friendly operation.
100% Leak-Tested at 1.5× Working Pressure — Each unit pressure-tested with nitrogen before shipment; ≤ 0.05 mL/min leak rate per gas path, well below NFPA 99 limits.
PB Compression Fitting Connection — No Soldering, No Threading — Built-in PB tube compression joint (1/2" or 3/4"), push-fit installation saves 60% labor time vs. brazed copper; compatible with existing PB piping systems.
