| Min. Order: | 200 Piece/Pieces |
|---|---|
| Payment Terms: | T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air |
| Production Capacity: | 1000 000 Set/Sets Per Month |
| Packing: | poly bag, carton box, export pallet |
| Delivery Date: | 30days | Brand Name: | OEM |
|---|---|---|---|
| Material: | Brass | Application: | Gas |
| Origin: | Zhejiang, China | Transport Package: | Polybag, Inner Boxcarton and Wooden Pallet |
| Trademark: | OEM | HS Code: | 9026801000 |
PB Ohmeda Chemetron Medical Air Gas Outlet Oxygen Gas Outlets Medical VAC Outlets
| Gas Type | Color | DISS | Ohmeda | Chemetron |
| Oxygen | Green | DS-CON-OXY | OH-CON-OXY | CH-CON-OXY |
| Air 4bar | Yellow | DS-CON-MA4 | OH-CON-MA4 | CH-CON-MA4 |
| Air 7bar | Red | DS-CON-MA7 | OH-CON-MA7 | CH-CON-MA7 |
| Vacuum | White | DS-CON-VAC | OH-CON-VAC | CH-CON-VAC |
| N2O | Blue | DS-CON-N2O | OH-CON-N2O | CH-CON-N2O |
| CO2 | Grey | DS-CON-CO2 | OH-CON-CO2 | CH-CON-CO2 |
| AGSS | Purple | DS-CON-AGSS | OH-CON-AGSS | CH-CON-AGSS |

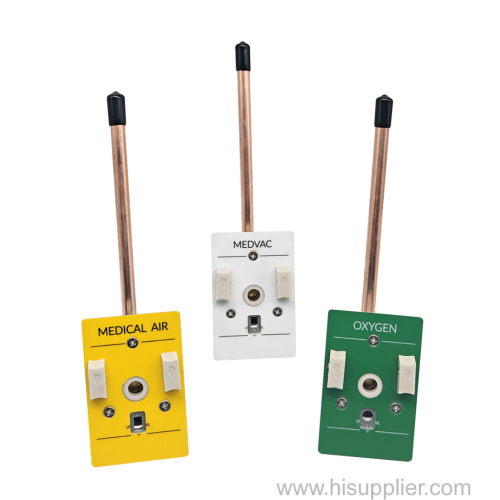

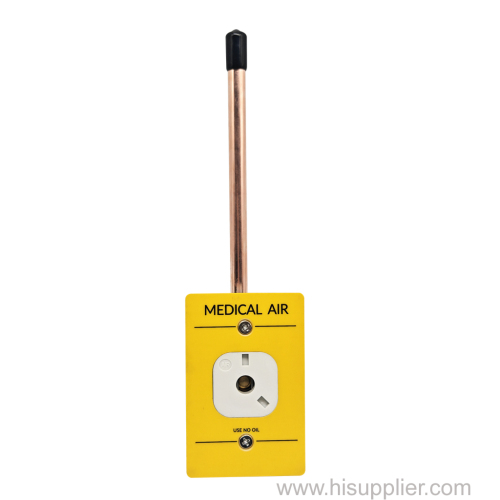

medical gas outlets include wall mount type and rough-in assembly type. Wall mount type is using installed on the wall, available in plastic and metal covers. Rough-in assembly type with a plastic decorative cover is using on the bed head unit.
Eastar gas outlets can provide 7 kinds of gas, including oxygen, medical air, vacuum, carbon dioxide, nitrogen, and instrument air. Different gas can be equipped with corresponding gas adapters.
- Complies with NFPA 99 and CGA Standard
- 360° swivel inlet pipe for easy installation
- Insertion and extraction 10000 times without failure
- Working pressure: 4-8bar
- O.D. Size: 8mm, 10mm, 12mm K type copper pipeline
- Accepts only Chemetron gas connection fitting
- 100% pressure and leak-tested, can be used safely and securely
- The outlet with two-stage one-way valve for easy maintenance without cutting gas supply
- NFPA full-color standard for easy gas identification and the gas name is marked on the outlet bracket and chrome-plated brass outlet valve body, avoid installation or use errors
OEM
Gas kinds:O2,Vacuum,N2O,CO2,ect.
