| Min. Order: | 500 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,CIF,DDP,DAP,EXW |
| Payment Terms: | L/C, D/P, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 10 0000pcs per month |
| Packing: | Polybag, Inner Box,... |
| Delivery Date: | Shipped in 30 days... | Power: | Hydraulic |
|---|---|---|---|
| Standard or Nonstandard: | Standard | Media: | Water |
| Pressure: | Medium Pressure | Material: | Brass |
| Temperature of Media: | Normal Temperature | Structure: | Check |
| Brand Name: | JUNYUAN | Size: | 1/2"--4" |
| Thread Connection: | Female Thread,BSP.NPT | Working Pressure: | PN25 |
| Technical: | FORGED | Certificate: | ISO9001, CE,ACS.UL,CSA |
| Brand: | JY or Professional OEM | Working Temperature: | -10-110℃ |
| HS Code: | 8481804090 | Function: | water ,oil ,Steam |

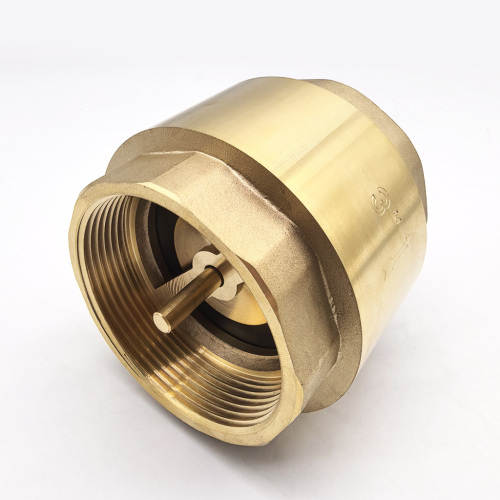

Brass Spring Check Valve/Brass Vertical Check Valve
Brass Check Valve 3/4" - 4" NPT Thread Female One Way Backflow Preventer for Plumbing Water Boiler Heating System
Specifications
Brass spring check valve Brass non return one way check valve Size : DN15--100 (1/2"~4")
1) ISO9001 Certificate
2) quality guaranteed
3) delivery in time
4) over 15 years experience
5) Nominal pressure:1.6Mpa.
6) Working medium:Water,non corrosive liquid(not include oil),saturated steam.
7) Working Temperature:-20℃≤t≤150℃.
8) Pressure testing to ISO5208 or as customer requirement
9) Pipe thread ISO 7/1, ISO228, DIN2999 , BSPT. BSP ,NPT ,G .R . ...
10) material part : brass body , plastic or brass pin
Material: MS58, CW617N, CuZn40Pb2, CZ132 , HOT STAMPING/ FORGING
Disc: Brass Disc silicon rubber seals or ABS disc NBR seals
Function :
Check Valve is an automatic valve, its main function is to prevent the media backflow, prevent pump and drive motor reverse, and discharge the container medium. Check valve can also be used in pipelines that its pressure which may rise to exceed the system pressure auxiliary supply.
Classification
Check valve is the valve relies on media flow to automatically open and close the disc, is used to prevent the media backflow, also known as check valve, one-way valve, reflux valve, and back pressure valve.
