| Min. Order: | 50 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,DAT |
| Payment Terms: | Paypal, L/C, D/P, D/A, T/T, WU, Money Gram |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 120000 PCS Per month |
| Packing: | white box corrugated... | Delivery Date: | Shipped in 30 days... |
|---|---|---|---|
| Power: | Hydraulic | Standard or Nonstandard: | Standard |
| Media: | Water | Pressure: | Medium Pressure |
| Material: | Bronze,Brass | Temperature of Media: | Medium Temperature |
| Structure: | Stop | Brand Name: | OEM |
| Certificate: | ISO9001 ,CE | Size:: | DN15-DN65 |
| Sealings:: | NBR, EPDM, Viton, PTFE envelop gasket | Color:: | Copper |
| Head Code: | round or Square | Connector type: | BSP(BSPP),BSPT,NPT |
| HS code: | 7609000000 | Technics:: | Casting,gravity casting. |
| Brand Name:: | JY or OEM |

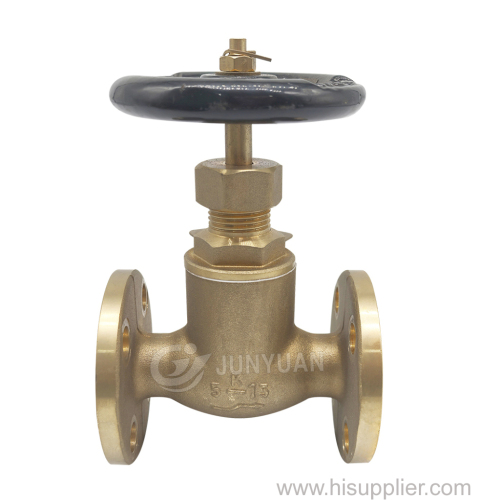

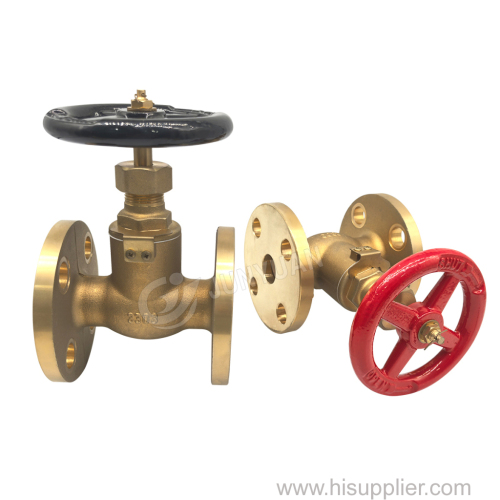

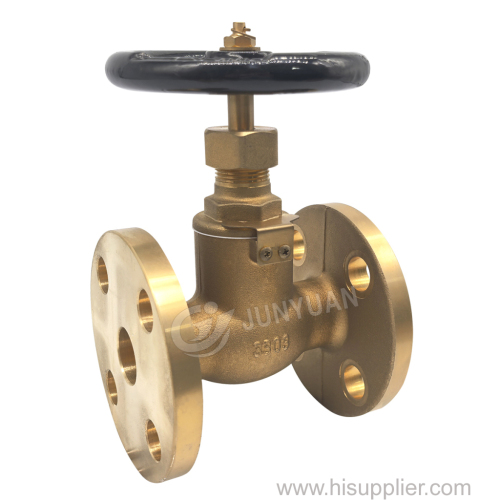

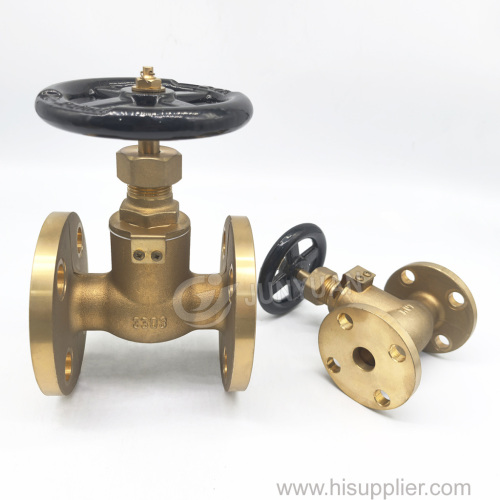

DN15-DN40 JIS F 7303 JIS 16K Bronze Globe Valve for Sea Water System
Part No. | Material |
1 - Body | Bronze |
2 - Bonnet | Bronze |
3 - Disc | Bronze |
4 - Stem | Brass |
SIZE | d | L1 | C | D | n-h | t | MGV01(Kg) | MGCV01(Kg) |
| 015 | 15 | 110 | 70 | 95 | 4-15 | 12 | 2.76 | 2.70 |
| 020 | 20 | 120 | 75 | 100 | 4-15 | 14 | 3.72 | 3.63 |
| 025 | 25 | 130 | 90 | 125 | 4-19 | 14 | 5.20 | 5.09 |
| 032 | 32 | 160 | 100 | 135 | 4-19 | 16 | 6.91 | 6.77 |
| 040 | 40 | 180 | 105 | 140 | 4-19 | 16 | 8.43 | 8.25 |
Category: MARINE VALVES
